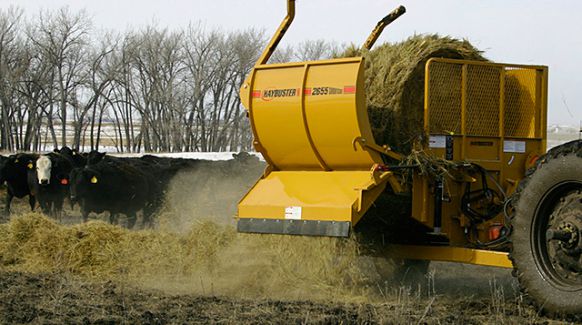

HayBuster 2655 Balebuster - old / NOT AVAILABLE

Double tap to zoom



Features

TWO STAGE BALE LOADER

The 2655 speeds up the loading process by allowing each bale to be lifted separately without disturbing the other bales. The bale loader also carries a second bale, to increase productivity.

Specifications



WEIGHT
Total 4700 lbs. (2132 kg)
Tongue (Bale loader fully raised) 1300 lbs. (589.7 kg)

TRANSPORT DIMENSIONS (Bale loader fully raised, deflector folded)
Width 8 ft 4 in (2.52 m)
Length 14 ft 11 in (4.55 m)
Height 11 ft (3.35 m)

WORKING DIMENSIONS (With 1 bale, deflector in spread position)
Width 10 ft 10 in (3.31 m)
Length 14 ft 11 in (4.55 m)
Height 11 ft (3.35 m)

WORKING DIMENSIONS (With 2 bales, deflector in spread position)
Width 10 ft 10 in (3.31 m)
Length 19 ft 7 in (5.95 m)
Height 11 ft (3.35 m)

CHASSIS FEATURES
Towing Arrangement Clevis type hitch.
Jack Capacity 5000 lbs. (2273 kg)
Jack Travel 10 in (25.4 cm)
Tires 2) 12.5L x 15 - 8 Ply
Wheels 2) 10 x 15 - 6 Bolt, Drop Center
Bearing Type Tapered Roller

BALE LOADER
Type Integral 2 Stage, Twin Boom Arms
Bale Tines Tubular Steel, 10° Float, 4 Position Width
Adjustable Hydraulic Cylinder 4-1/2 in x 24 in (11.43 cm x 60.96 cm ), Double-Acting

BALE CONVEYOR
Type 3 Roller Chains with Bolt-On Cross Slat
Drive Hydraulic Orbital Motor with Adjustable Flow Control

BALE SHREDDER CHAMBER
Max. Bale Size 6 ft. long x 6-½ ft. dia. (1.83 m x 1.98 m)
Max. Bale Weight each 2200 lbs. (1000 kg)
Rotor Length 78 in. (1.98 m)
Rotor Diameter (Flails extended) 25 in. (63.5 cm)
Rotor Bearing Ball, 1-3/4 in. (4.44 cm)
Number of Flails 40
Rotor Speed 1300 RPM
Flail type Heavy Duty, 7/16 in. (11.11 mm) thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging
Number of Stripper Channels 3
Number of Slug Bars 9
Slug Bar Single point, 5 Adjustment Settings through a 180 Degree Range  (optional hydraulic adjustment)
Delivery Right Hand Discharge
Deflector 6 Adjustment Settings through a 120 Degree Range
Max. Horizontal Spread Straw, up to 50 ft. (15.24 m)

OPERATOR CONTROLS
Loader 1 Tractor Double-Acting Hydraulic Valve
Bale Conveyor 1 Tractor Double-Acting Hydraulic Valve
Bale Conveyor Speed Conveyor Speed Control Valve
Slug Bar Hand Lever with 5 Settings (optional hydraulic adjustment)
Deflector Hand Lever with 6 Settings (optional hydraulic adjustment)

REQUIREMENTS FOR OPERATION
PTO Horsepower Required 65hp (48.5kw) to 155hp (115.6kw)
PTO Type 1000 RPM, 1-3/8 in. dia. PTO Shaft with 21 Splines choice of Constant Velocity or Standard PTO
Min. Tractor Hydraulic Output 8 gpm at 1500 psi (46 lpm x 10,345 kPa)
Tractor Hydraulic Controls 2 Double-Acting Control Valves with Quick Coupler Outlets
Tractor Weight Must be of equal or greater weight than that of a 2655 with 2 bales
