HayBuster 1150 Commercial

Double tap to zoom



Features

ENCLOSED ENGINE COMPARTMENT W/EASY ENGINE ACCESS
The enclosed engine compartment and Rotary Self-Cleaning Screen protects the engine from dirt and debris buildup. An enclosed engine compartment also reduces the noise level. The 1150 also gives you easy access to the engine with a 3-door entry on either side, plus a front door to the radiator.

COMMAND CONSOLE WITH OPTIONAL REMOTE CONTROL
A central command console is conveniently located and controls all the functions of the machine. An optional remote control is available to keep you out of the dust! It controls the tub rotation, conveyor lift, conveyor articulation, and engine stop. The electronic governor keeps the engine RPMs constant resulting in increased effeciencies and constant load.

C15 CATERPILLAR ELECTRONIC DIESEL ENGINE
Powered by either a 475 HP (354kw) or a 540 HP (403 kw) C15 Caterpillar electronic diesel engine whose state of the art electronic fuel injections system decreases fuel consumption and allows it to produce ground hay at a rate that will make you money on every job. It's strong enough to chew through those tough wet bales, and has all the features you've come to expect from Caterpillar; like reliability, cold weather starting, unsurpassed product support, and proven resale value.

KPTO FLUID COUPLER
The KPTO Fluid coupler transmits power with up to 98% efficiency and eliminates the mechanical clutch. It’s goof proof, and acting as a torque limiter it can engage or disengage at full engine rpm without damage - reducing the chance of problems in the drive train. Additionally the KPTO Fluid coupler requires minimal maintenance.

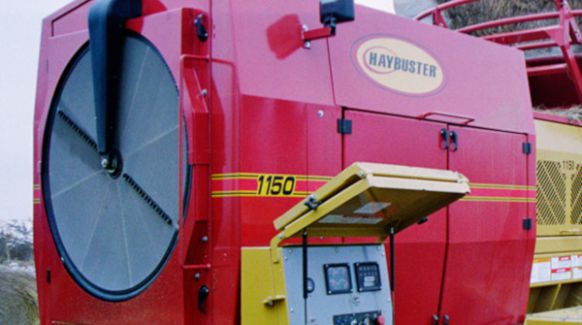

ROTARY SELF-CLEANING SCREEN
The enclosed engine compartment and Rotary Self-Cleaning Screen protects the engine from dirt and debris buildup. An enclosed engine compartment also reduces the noise level. The 1150 also gives you easy access to the engine with a 3-door entry on either side, plus a front door to the radiator.

BIG BITE HAMMERMILL
The Big Bite hammermill is located at the rear of the subframe, reducing the length of the belly conveyor, improving the belly conveyor service accessibility, and moving the dust away from the operator. The hammermill is also dynamically balanced to give you smoother operation, longer life, and less maintenance.

90 DEGREE TUB TILT
The 11 ft. wide x 50 in. deep tilt tub opens a full 90 degrees for access to the hammermill and screens as well as for normal servicing.

50° OSCILLATING STACKING CONVEYOR
The 30 in. Wide x 26 ft. Long stacking conveyor piles hay to over 18 feet in height. The conveyor can oscillate left to right up to 50 degrees, which means you can not only make the pile tall, you can make it wide also.

11' TUB WITH TIP IN TUB FLARES (SIDES)
The sides are folded in to narrow the transport width of the grinder.

Specifications

WEIGHT (DRY)  -
Total 34,100 lbs. (15,468 kg)
Axle 27,900 lbs. (12,656 kg)
Tongue 6,200 lbs. (2,813 kg)

TRANSPORT DIMENSIONS  -
Width 11 ft. (3.35 m)
Height 11 ft 6 in (3.51 m)
Length 31 ft (9.448 m)

ENGINE  -
Manufacturer CATERPILLAR
Model C15
Type In-line, 6 cylinder, 4 -Stroke Diesel
Power Rating 475 HP (354 kw) or  540 HP (403 kw)
Bore 5.4 in (137 mm)
Stroke 6.5 in (165 mm)
Displacement 983 cu. in. (14.6 L)
Fuel System Electronic Unit Injector
Aspiration Turbocharged and air to air aftercooling
Compression Ratio 16.25 : 1
Rotation (from flywheel end) Counter-clockwise
Engine Housing A sealed enclosure with a rotary screen at the front that removes debris from the air prior to being drawn through the radiator. Air is directed around engine       components to provide surface cooling and discourages dust buildup. Air       exits out the bottom between the engine and right and left frame channels.       3 generous sized service access doors are provided on both the right and       left sides.
Radiator Staggered Core with 7 fins per inch
Cooling System 9.2 gal. (34.8 L)
Lube Oil System (refill) 10 gal (38 L)
Engine Air Induction Clean air is drawn in front of radiator through an inline separator and dry type air filter with safety element.
Engine Block Heater 120V / 2000 watt

FLUID COUPLING  -
Manufacturer TRANSFLUID
Model Model KPTO-19 Fluid Coupling
Type Drain Type Fluid Coupling
Charge Pump Gear type
Cooler Oil to air, thermostatic controlled electric fan
Features Unloaded engine warm-up, smooth startup, shock and overload protection, absorbs vibrations, electric/hydraulic control valve
Maintenance Easy access oil filter and drain plug
Fluid Capacity 9.24 gal (35 L)

HYDRAULIC SYSTEM  -
Cooler Oil to Air, radiator mounted
Pump Gear type, 2 section, output is 25 & 15 gpm @ 2100 psi., engine mounted
Control Valves Electric/Hydraulic, 4 valves - 1) 4 spool, 2) single spool, and 1 proportioning
Reservoir Capacity 50 gallon (171 liter)
Tub Tilt 3 in x 30 in (7.62 x 76.2 cm) Hydraulic Cylinder
Conveyor Lift 2) 3 in x 36 in ( 7.62 x 91.44 cm) Hydraulic Cylinders
Conveyor Fold 2) 3 in x 30 in (7.62 x 76.2 cm) Hydraulic Cylinder
Conveyor Articulation 2) 2 in x 8 in (5.08 x 20.3 cm)

CHASSIS FEATURES  -
Fire Suppression 2) 20 lbs (9.09 kg) Fire Extinguishers, front mounted on the right and left side of the main frame
Fuel Capacity 300 gal (1,135 L)
Lights Clearance, Directional, and Brake
Towing Arrangement 5TH WHEEL
Axle Tandem, rated 22,500 lbs.

HAMMERMILL  -
Length 50" (127 cm)
Diameter, Hammers Extended 26" (66.04 cm)
Feed Opening 25 in x 52 in (63.5 cm x 133 cm)
Mill Feeding Mill Grate
Hammers 1/2" (1.27 cm) AR-Hardened Steel , Swing
Number of Hammers 88
Hammer Rods 1-1/4 in (31.75 mm) dia., Case Hardened
Mill Plates 1/2" (1.27 cm) thick X 16" (40.64 cm) dia.
Mill Shaft 4-1/2 in (114.3 mm), Stress Proof Steel
Bearings 4 in (101.6 mm), Pillow Block Bearings
Drive Direct from Fluid Coupling
Screens 1/8 in (3.18 mm), 3/16 in (4.76 mm), or 1/4 in (6.35 mm) thick and various hole sizes from 1/8 in (3.18 mm) to 8 in (203.2 mm)
Screen Area 2,781 sq. in. (7,063.75 sq. cm.)

TUB FEATURES  -
Loading Height 9 ft 6 in (2.89 m)
Tub Width 11 ft (3.35 m)
Depth 50 in. (127 cm)
Tub Diameter at Base 9 ft (2.74 m)
Tub Wall Thickness 12 gage (2.66 mm)
Tub Floor Thickness 1/4 in (6.35 mm)
Drive Mechanism Electro/Hydraulic
Speed control Electronic Governor
Service Access Tub opens to 90 degrees to the right side

BELLY CONVEYOR  -
Type Rubber Belt with 3/4 in (19.05 mm) cleats
Width 36 in (91.4 cm)
Drive Hydraulic
Drive & Idler Rollers Type "Easy Clean"

STACKING CONVEYOR  -
Type Rubber Belt with 1-1/2 in (38.1 mm) Cleats
Drive Hydraulic, Top driven
Drive & Idler Roller Type "Easy Clean"
Length 26 ft. (7.92 m)
Width 30 in. (76.2 cm)
Max. Conveyor Discharge Height 18 ft 3 in (5.56 m)
Lift Electric/Hydraulic
Fold Electric/Hydraulic
Oscillation (50°) Electric/Hydraulic

OPERATOR CONTROLS CENTRAL COMMAND CONSOLE  -
Engine Functions
Battery Disconnect Rotating key, switch with power off, lock, power on
Ignition Rotating key switch with lock, power on, start, run and power off
Throttle 3-position switch to increase rpm, hold rpm, and decrease rpm
Emergency Engine Stop 2-position switch, pull out to run and push in to stop
Tub Grinder Functions
Hammermill 2-position switch, pull out to engage and push in to disengage
  2-position safety switch, push and hold until hammermill begins to spin
Conveyor Lift 3-position switch to raise, hold, & lower
Conveyor Oscillation 3-position switch for right, hold, & left
Conveyor Storage 3-position switch to fold, hold or to unfold
Belly & Discharge Conveyor 2-position switch to engage and disengage
Tub Rotation 3-position switch to operate tub clockwise, stop, & counter-clockwise
Tub Speed Model RCB93 electronic governor stabilizes engine load by adjusting tub rotation speed
Tub Tilt 3-position switch to raise, hold, & lower

REAR COMMAND CONSOLE  -
Conveyor Lift 3-position switch to raise, hold, & lower
Conveyor  Oscillation 3-position switch for right, Hold, & left
Conveyor Storage 3-position switch to fold, hold or to unfold

REQUIREMENTS FOR OPERATION TRUCK SPECIFICATIONS  -
Min. Truck Horsepower 300 HP (223.7 kw)
Min. Rear Axle(s) Capacity 31,100 lbs (14,106.7 kg)
Min. Front Axle Capacity 9,650 lbs (4,377.17 kg)
Recommended Rear Axle Suspension Air ride with dump valve (to lower loading height)
Frame Width 34" +/- 1/2"
Frame Material Steel
Fuel Tanks Dual tanks are recommended
Minimum of 200 gal for truck and grinder combined use, if off-road fuel
is allowed for truck use in this application.

Minimum of (1) 150 gal and (1) 50 gal tanks if off-road fuel is not for
truck use.

Minimum of (1) 50 gal min if optional 211 gal truck style tank is selected
(see fuel system setup instructions for more information)
Fuel System Setup Methods Method 1 - Tanks should be connected with a minimum of ½ in crossover
fuel line with quarter-turn shutoff valves at each tank. Grinder and truck will
share fuel source. DO NOT tee off of truck supply lines, this will un-prime
the truck fuel system. This setup is recommended only if local laws allow
off-road fuel use in this truck in this application.

Method 2 - Truck and grinder will each use a fuel tank dedicated to their
separate operation. It is recommend that the tanks be connected with a
crossover line with shutoff valve so the truck source tank can be used for a
grinder reserve tank.

Method 3 - Truck is equipped with one tank for the truck engine on driver’s
side. An optional 211-gallon tank will be installed on the passenger side.
Adequate space will be required under truck cab for the tank.
