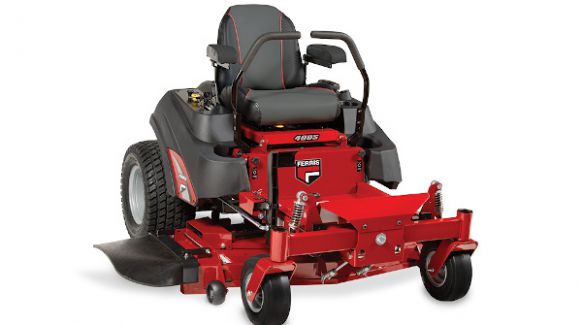

Ferris 5901705

Double tap to zoom



Features

Commercial Grade Power
Briggs & Stratton® Commercial Series engines are built with the ultimate in dust and particle filtration, an advanced debris management system and beefed-up cylinder block structure.

Patented Suspension
The 400S comes equipped with independent rear coil-over shocks (shown) meaning less concern for uneven ground, and more focus on getting work done.

Thoughtful Styling
Flanking the operator seat you will notice a conveniently integrated cup holder and an easy to read fuel gauge for the generous 5.5 gallon fuel tank.

Fabricated Bumper
The fabricated steel / tubular bumper protects the 400S’s engine while giving easier access for service, and accepts a variety of attachments like a bagging or tow/hitch system.

Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Hydro-gear® ZT-2800®
The dual Hydro-gear® ZT-2800® transaxles deliver speeds up to 8 mph and feature an external oil filter for easier maintenance, so you can spend more time getting work done.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Model Number 5901705
Engine Brand Kawasaki® FR651V
Engine Power Rating * 21.5
Displacement (cc) 726
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 5.5
Cutting Width (in) 48
Cutting Height (in) 1.5 - 4.5
Spindles Aluminum
Deck Construction 10-guage fabricated
Suspension Front and rear adjustable dual coil-over shocks
Transmission Dual Hydro-Gear® ZT-2800® transaxles with 7" cooling fans
Drive Axles (in) 1
Caster Tires (in) 11 X 6-5
Drive Tires (in) 20 X 10-10
Ground Speed-Fwd (mph) 0-8
Ground Speed-Rev (mph) 0-4
Overall Length (in) 73.5
Overall Width (in) Deflector Down/Deflector Up 59 / 53
Dry Weight (lbs) 753
Seat Package Mid-back seat with arm rests
Controls / Safety Group Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit Hand-operated internal transaxle brake
