J&M Manufacturing HT-974-16 / NOT AVAILABLE
Low-Profile Series HT-974-16
Overview:

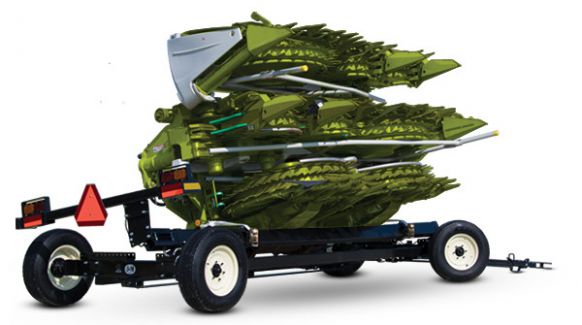

HT-974-16 and HT-974-20 transports are made for folding corn and forage harvester heads. The compact size and heavy duty construction features a thick wall upper bar and trussed lower bar to accomodate the extra weight of folding heads. The Heavy-Duty Series is available in both the 16' and 20' sizes. The low overall h... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- For John Deere and Claas forage harvester folding heads
- Shorter tongue
- Heavier capacity
- Truss under lower bar
- Thicker wall on upper bar
- Lower bar located closer to the ground
- Low profile linkage for upper bar
- Four tie-down straps
- Lower light bar to clear corn heads
- 15"×6" wheels and 225/75R15E new tires
Specifications
| Model | HT-974-16 |
| Weight | 1,580 lbs |
| Capacity (net) | 10,800 lbs |
| Spindle Size | 1 3/4" Diameter |
| Wheel Size | 15" x 6" - 6 Bolt |
| Tire Size | 225/75R15E |
| Steel Upper Bar | 4" x 6" |
| Upper Bar Length | 16' |
| Box Channel Axle Frame | 6" |
