Berlon Attachments MTMFGR-78

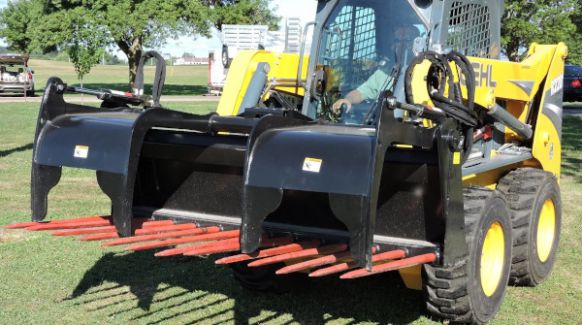

Master Tool Manure Fork Grapple MTMFGR-78
Overview:
Berlon’s Master Tool Manure Fork Grapple is a useful skid steer or compact tractor attachment for picking up manure, loose hay and other miscellaneous material around the farm.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Cylinders - 3,000 lbs., 2.5” bore
- Includes standard Conus l-40” tines; welded in sleeves
- Dual, independent claws
- Hoses & couplers, hose saver and needle valve included
Specifications
| Model | MTMFGR-78 |
| Inside Dimension (in.) | 78 |
| Outside Dimension (in.) | 79.5 |
| "A" Height (in.) | 21 |
| "B" Depth (in.) | 42 |
| "C" Angle (deg.) | 70 degree angle |
| "D" Grapple Opening (in.) | 35.5 |
| Weight (lbs.) | 946 |
| Tines (qty.) | 13 |
| Space Between Tines (in.) | 6 |
| HD Package | n/a |
| Includes MPUF-1 Universal mounting plate. Other options available. | |
