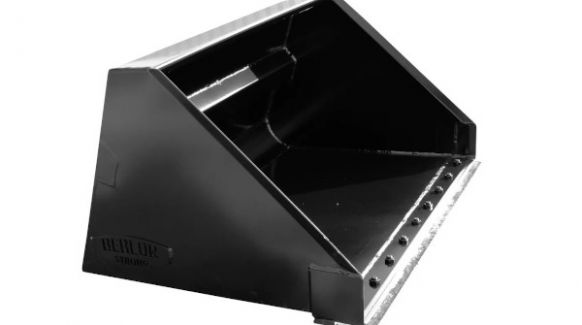

Berlon Attachments MISLMB-60
Features
- 3/16” thick steel body
- ½” x 4” weld-on cutting edge with holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
Options
- Bolt-On cutting edge
- Mini Tooth bar
Specifications
| MISLMB Series (Model #) | MISLBMB-60 |
| Inside Dimension (in.) | 60.0 |
| Outside Dimension (in.) | 61.0 |
| "A" Height (in.) | 29.0 |
| "B" Depth (in.) | 39.0 |
| "C" Angle (deg.) | 70 Degree Angle |
| Weight (lbs.) | 490 |
| Heaped Capacity (cu. ft.) | 27.0 |
| Wear-bars (3/8" x 3") | 2 |
| Dimple Plate | N/A |
| HD Package | N/A |
| Includes MIUNV - Universal Mini Mount | |
| MPDG-1 and MIBOB-1 Mounts available | |
