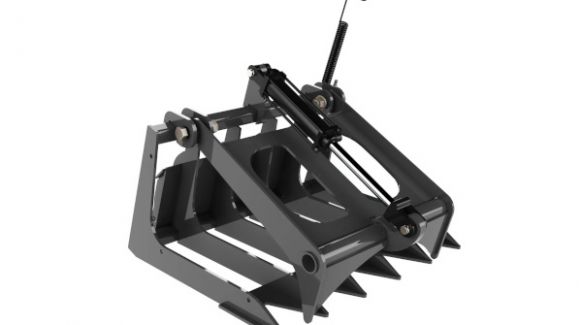

Berlon Attachments MIGR-36
Mini Grapple - MIGR MIGR-36
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 3/8" Tine Thickness
- 6.5" Space Between Tines
- 41.0" Grapple Opening
- Includes needle valve, hose saver spring, hoses and couplers
- Includes MIUNV - Universal Mini Mount.
- Optional Bolt-On Ends
Specifications
| Model | MIGR-36 |
| Inside Dimensions (in.) | 31.5 |
| Outside Dimensions (in.) | 33.0 |
| "A" Height (in.) | 18.0 |
| "B" Depth (in.) | 30.0 |
| "C" Angle (deg.) | 65 degree angle |
| "D" Grapple Opening (in.) | 36.0 |
| Weight (lbs.) | 260 |
| Space between Tines | 6.5 |
| Tine Thickness (in.) | 3/8 |
| Includes MIUNI-Universal Mini Mount | |
| MPDG-1 and MIBOB-1 Mounts available | |
