Berlon Attachments B-54 / NOT AVAILABLE

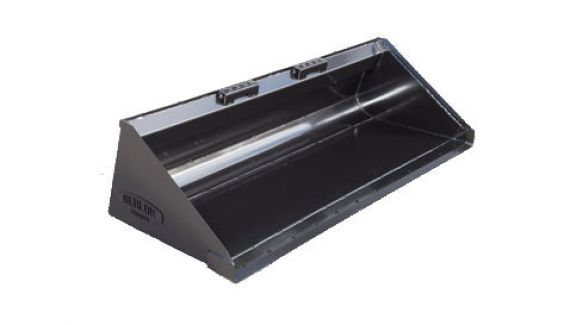

Low Profile Bucket B-54
Overview:
Common uses include: Excavating, landscaping, construction, and general purpose.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Reinforced dimple plate (60” and wider) — a Berlon exclusive
- 3/16” thick steel body
- Heavy-duty 3/8” x 3” side cutting edges 3/4” x 6” weld-on cutting edge with holes
- Reinforcement tube across back of bucket
- Heavy-duty package available; includes heavy-duty mount and extra reinforcement
- Radius kick-out plate for added strength and easy clean out
- Universal mounting plate is standard; other mounts available
Specifications
| B Series Bucket (Model No.) | B-54 |
| Inside Dimensions (in.) | 54 |
| Outside Dimensions (in.) | 55.5 |
| "A" - Height (in.) | 21 |
| "B" - Depth (in.) | 30 |
| "C" - Angel (deg.) | 70 degree angle; other angles available |
| Bucket Weight (lbs.) | 363 |
| Heaped Capacity (cu. Ft.) | 12.5 |
| Wearbars (1/2"x3") | 2 |
| HP Package (Bucket height changes to 22.5") | Optional |
