Berlon Attachments SCSB-84

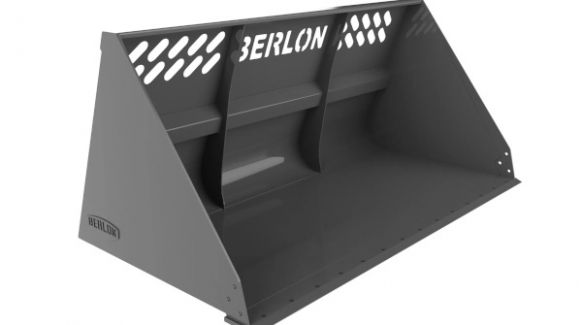

Super Capacity Snow SCSB-84
Overview:
Common uses include: Snow & other materials.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Fully welded body
- 1/2" x 3" wearbars
- 3/4" x 6" cutting edge with holes
- Radius kick-out plate for added strength & easy clean out
- Reinforcement tube in line with the top of the mounting plate
- Additional reinforcement tube above standard rein
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Bolt-On Side Cutters
- Poly Edge
- Change back angle add $125.00
Specifications
| SCSB SERIES MODEL | SCSB-84 |
| Inside Dimension (in.) | 84 |
| Outside Dimension (in.) | 85.5 |
| "A" Height (in.) | 41 |
| "B" Depth (in.) | 46 |
| "C" Angle (deg.) | 70 Degree angle; other angles available |
| Weight (lbs.) | 976 |
| Heaped Capacity (cu. Ft.) | 64.2 |
| Wear-bars (1/2" x 3") | 3 |
| Dimple Plate | NO |
| HD Package | Standard |
| Includes MPUF-1HD Universal Mounting plate. Other mounts available. Call for pricing. | |
| HD Package * Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track macines and others over 75 HP. | |
