Berlon Attachments BELGR-72

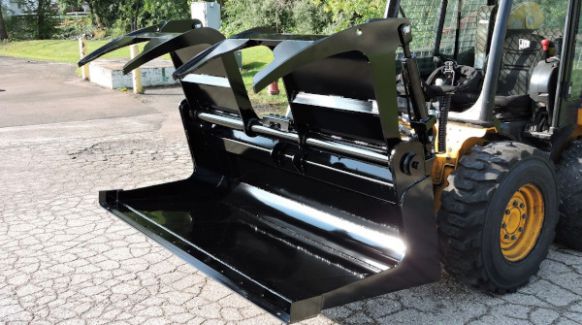

Extended Lip Grapple BELGR-72
Overview:
Common uses include: Demolition, scrap yard,
and other general clean-up applications.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Features
- 3/16” thick steel body
- 3/4” x 6” weld-on cutting edge with holes
- Cylinders - 3,000 lb., 2.5” bore
- Extended floor for greater cutting edge visibility
- Radius kick-out plate for added strength & easy clean-out
- Reinforcement tube across back of bucket
- Dual, independent claws
- Scrap ends, hose & couplers, hose saver and needle valve included
- Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Bolt-On Ends
Specifications
| Model | BELGR-72 |
| Inside Dimensions (in.) | 72 |
| Outside Dimensions (in.) | 73.5 |
| "A" Height (in.) | 21 |
| "B" Depth (in.) | 36 |
| "C" Angle (deg.) | 70 Degree Angle |
| "D" Grapple Opening (in.) | 34.25 |
| Weight (lbs.) | 1027 |
| Wear-bars (1/2" x 3") | 2 |
| Dimple Plate | Yes |
| HD Package (Back height changes to 22.5) | Optional |
| Includes MPUF-1 Universal Mounting Plate | |
| HD Package* Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP. |
|
