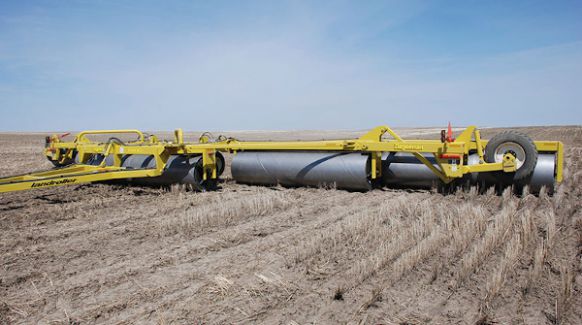

Degelman LR8080

Double tap to zoom



Features

Wide. Really wide.

64 feet and 80 feet. Extreme Duty. No maintenance. These five-plex rollers contour like never before, allowing you to cover a lot of ground, worry-free. Degelman landrollers are some of the heaviest, most reliable available. Ideally used for peas, beans and lentils, they also prepare the perfect bed for haying, grasses and silage.

Superior Yields.

Degelman landrollers not only decrease downtime and fuel costs, they also provide optimal seed to soil contact while reducing weeds and moisture loss. Level land allows cutter bars to safely access the base of plants without the risk of rock ingestion. This allows for a faster, safer and easier harvest which ultimately translates to a increased yield on pulse crops such as beans and cereals.

Heavy Duty. Built to Last.

The rigid frame is made out of eight inch structural tubing. The drums are manufactured from 36 inch diameter pipe with over-sized shafts and bearings. Extra heavy duty cross joints and high quality cylinders and bearings are just a few of the standard features incorporated into this machine.

HD Oversized Tubing

At 12 x 8 inches, the oversized HSST tubing offers maximum support throughout the entire length of each roller.

Extreme Duty, No Maintenance Bearings.

These extreme duty, double-row, spherical bearings are proven through years of performance in applications ranging from marine to mining. The sturdy one-piece flange unit and bearing insert is completely assembled, sealed and lubricated in clean factory environments. The phosphate coated insert bearing provides excellent corrosion protection. Single lip contact seals mounted in the outer ring of the bearing ensure superior sealing under contaminated conditions and allow higher misalignment capability.

Extreme Flexibility.

The unique “floating hitch” system provides the LR8000 series with more flexibility while in the field position. The hydraulic cylinders set on “float” allow the roller to move freely over rough terrain without being restricted by the hitch.

Simple and Safe.

Degelman pioneered the swept back trailing wing auto-fold concept, keeping it safe and easy to use. The least experienced operator on the farm can roll with confidence, positioning the machine from transport to field ready from the tractor seat.

Smooth Transport

The ease of transporting this roller from working width to a transport width of 16 feet (without operators needing to leave the tractor cab) makes it the safest in transport of any landroller available.

Specifications

Model LR8080
Number of Segments 5
Drum Width Configuration 17' | 17' | 15' | 17' | 17'
Working Width 80'
Drum Diameter 36"
Drum Overlap 6" & 11-1/2"
Drum Width (center) 15'
Drum Width (inner wing) 17'
Drum Width (outer wing) 17'
Transport Length 59'-5"
Transport Width 16'
Transport Height 6'-10"
Working Weight 33,202 lbs
Weight Per Ft 415 lbs
Transport Hitch Weight 575 lbs
Hitch Pole Thickness 4" x 6" x 1/4"
Center Frame Thickness 8" x 12" x 1/4" & 8" x 8" x 1/4"
Wing Frame Thickness 8" x 12" x 1/4"
Hydraulics - Hitch Float 3-1/2" x 8" x 1-1/2" Rod
Hydraulics - Transport (center) 3-1/2" x 16" x 1-1/2" Rod
Drum Wall Thickness .46 - .6"
Drum Bearings 2-7/16" Double Row Spherical Roller
Drum Shaft (impact resistant) 2-7/16" dia
Cross Joint Pins 2-1/2" dia
Tires (center frame) 11 L x 15 (12-Ply)
Tires (wing) 17.5 L x 16 (8-Ply) or 235 (75R)
Floating Hitch Hydraulic
Mud Scrapers Standard
Safety Lights LED
Autofold (transport to field) Back Up with Hydraulic Assist
Autofold (field to transport) Drive Forward
