Degelman HY-Roller XL 51
HY-Roller HY-Roller XL 51
Overview:

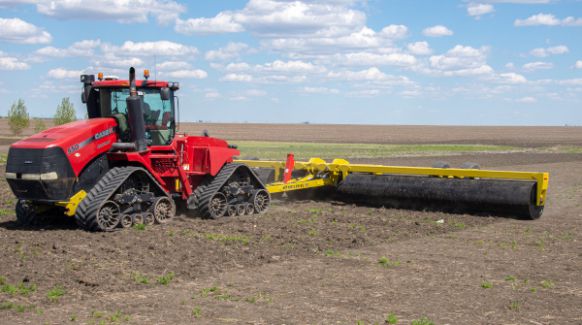

Introducing the Hy-Roller from Degelman. Customizable with 36” or 42” drums to fit your farming operation. The Degelman Hy-Roller is simple, robust and designed with a “Drop the Pin and Go” mentality. True Greaseless Technology will get you in the field earlier and keep you in the field longer.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
THE BENEFITS OF THE HY-ROLLER
- Maintenance Free
- Narrow Transport
- Extreme Duty Robust Frame
- Choice of 36” or 42” Drum (Spring 2023)
- Articulated Hitch
- 2 Inch Pro-Till Style Hinge (No Cross Joints)
- Fully Hydraulic:
- Hitch Float
- End Wheel Turning
- Field/Transport - Reduced Wear Points (No Truss, Swing Arms, Latches, and Cross Joints)
- Rigid Frame Makes for Easy Towing
36" vs 42" DRUM SIZE
A smaller diameter 36” drum, since it has less surface area, will provide more downward packing pressure per foot. In areas that are traditionally more minimum till to no-till, this extra packing pressure will handle stones and level the field more consistently. For areas that are more aggressively tilled, and hay land, a 42” provides less packing pressure per foot, but makes up for it with a heavier drum.
Specifications
| Model | HY-Roller XL 51 |
| Drum Configuration | 20ft-5in|11ft|20ft-5in |
| Working Width | 51ft |
| Drum Diameter | 42in |
| Drum Overlap | 5in |
| Transport Length | 40ft-11in |
| Transport Width | 12ft-6in |
| Transport Height | 8ft-4in |
| Working Weight | 22, 500 LBS (@0.500"W) |
| Weight Per Foot | 441 LBS |
| Transport Hitch Weight | +3, 375 LBS (@0.500"W) |
| Wing Beam | 8"X12"X1/4" |
| Drum Wall Thickness | 0.46-0.60" |
| Drum Bearings | 3in Ball Bearing |
| 6-Lip Seal | |
| Drum Shaft | 3in Diameter |
| Tires | 385/65R22.5 |
| Hub/Spindles | 10,000 lbs/3in Diameter |
| Floating Hitch | Hydraulic |
| Steering | Hydraulic |
| Autofold Transport to Field | Back up with Hydraulic Assist |
| AutoFold - Field to Transport | Drive Forward |
