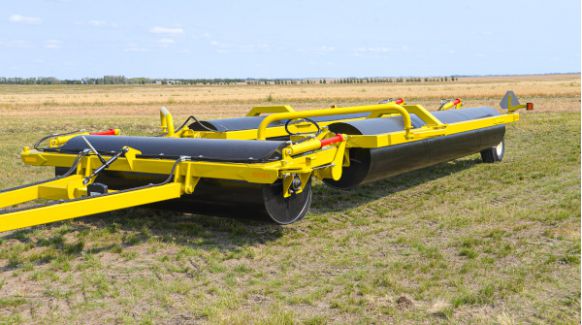

Degelman LR7651

Double tap to zoom



Superior Yields.

Degelman landrollers not only decrease downtime and fuel costs, they also provide optimal seed to soil contact while reducing weeds and moisture loss. Level land allows cutter bars to safely access the base of plants without the risk of rock ingestion. This allows for a faster, safer and easier harvest which ultimately translates to a increased yield on pulse crops such as beans and cereals.

It’s all in the Details.

Every Degelman product is equipped with original Degelman hydraulic cylinders. These cylinders are designed with the harshest conditions in mind and built with induction hardened shafts, double seals, wear bands and easy open serviceability.

Heavy Duty. Built to Last.

The rigid frame is made out of six inch structural tubing. The drums are manufactured from 36 inch diameter pipe with over-sized shafts and bearings. Extra heavy duty cross joints and high quality cylinders and bearings are just a few of the standard features incorporated into this machine.

HD Oversized Tubing

At 6 x 6 inches, the oversized HSST tubing offers maximum support throughout the entire length of each roller.

Maintenance Free Roller Bearings

These extreme duty ball bearings are proven through independent testing and years of performance in applications ranging from marine to mining. The sturdy one-piece flange unit and bearing insert is completely assembled, sealed and lubricated. The phosphate coated insert bearing provides excellent corrosion protection. Six lip contact seals mounted in the outer and inner ring of the bearing ensure superior sealing under contaminated conditions and allow higher misalignment capability.

Extreme Flexibility.

The unique "floating hitch" system provides flexibility while in field position. While in float position, the roller is allowed to move freely over rough terrain without being restricted by the hitch.

Flat Fields. Maximum Yields.

From flattening corn stalks to embedding rocks, Degelman Landrollers are the ideal piece of equipment for achieving flat fields and maximum yields.

Simple and Safe.

Degelman pioneered the swept back trailing wing auto-fold concept, keeping it safe and easy to use. The least experienced operator on the farm can roll with confidence, positioning the machine from transport to field ready from the tractor seat.


Model LR7651
Number of Segments 3
Drum Width Configuration 20' | 11'-6" | 20'
Working Width 51'
Drum Diameter 36"
Drum Overlap 4-3/8"
Drum Width (center) 11'-6"
Drum Width (wing) 20'
Transport Length 45'
Transport Width 16'
Transport Height 5'-2"
Working Weight 18,007 lbs
Weight Per Ft 353 lbs
Transport Hitch Weight 275 lbs
Hitch Pole Thickness 4" x 6" x 1/4"
Center Frame Thickness 6" x 6" x 1/4"
Wing Frame Thickness 6" x 6" x 1/4"
Hydraulics - Transport 3-1/2" x 16" x 1-1/2" Rod
Drum Wall Thickness .46 - .6"
Drum Bearings 2-7/16" Double Row Spherical Roller
Drum Shaft (impact resistant) 2-7/16" dia
Cross Joint Pins 2" dia
Tires (center frame) 9.5 L x 15 (8-Ply)
Tires (wing) 12.5 L x 15 (8-Ply)
Floating Hitch Mechanical
Mud Scrapers Standard
Safety Lights LED
Autofold (transport to field) Back Up
Autofold (field to transport) Drive Forward
