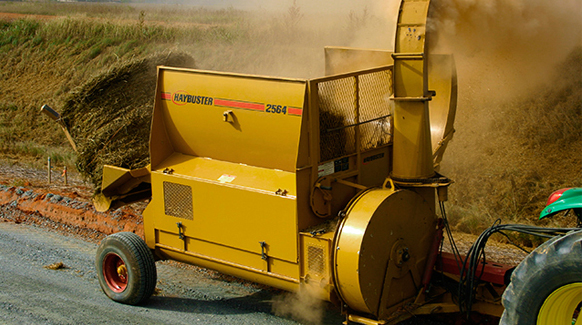

HayBuster 2564 Balebuster

Double tap to zoom



Features

The straw cannon throws product up to 100’. It is ideal for covering legumes and other erosion control applications.
The 3’ curved spout can be rotated 360 degrees for full operator control. It is great for bedding or reaching over fences, gates, and into hoop barns.
The heavy-duty rotor shaft has 40 flails taking bites out of each bale. The product is then forced through a screen, then moved by the auger and out the blower, with the spout of your choice. The access door allows for easier service and maintenance of the rotor, auger and screens.

  •  Variety of spout options to fit your application. Straw cannon for throwing further, to the curve spouts for bunk feeding and better control.
  •  360 degree hydraulic spout rotation and vertical fan up & down, allows for better control over your mulch from the seat of your tractor.
  •  Inline drive PTO with slip clutch protection to protect both the machine and your tractor.
  •  Heavy-duty oil bath chain case for reversing rotor direction & increasing speed!
  •  Two stage bale loader that easily floats on the ground without disturbing the bale.
  •  Easy access rotor door for service & maintenance.
  •  Heavy duty rotor and rotor shaft with 40 hammers

Specifications

WEIGHT  -
 Total 6,325 lbs (2,868.97 kg)

TRANSPORT DIMENSIONS (Empty , Loader Fully Raised)  -
 Width 8 ft 11 in (2.72 m)
 Length 16 ft 6 in (5.02 m)
 Height 10 ft 9 in (3.28 m)

WORKING DIMENSIONS (With 1 Bale, Loader Fully Raised.)  -
 Width 10 ft 3 in (3.12 m)
 Length 16 ft 6 in (5.02 m)
 Height 10 ft 9 in (3.28 m)

WORKING DIMENSIONS (With 2 Bales, Loader in Bale Transport)  -
 Width 10 ft 3 in (3.12 m)
 Length 22 ft 7in (6.88 m)
 Height 10 ft 9 in (3.28 m)

CHASSIS FEATURES  -
 Towing Arrangement Clevis Type Hitch, Height Adjustable w/safety chain
 Hitch Jack 5,000 lbs (2,268 kg) rating - 15" lift
 Axle Extension Optional 12 in.
 Wheel Bearing Type Tapered Roller

BALE LOADER  -
 Type Integral 2 Stage, Twin Boom Arms
 Bale Tines Tubular Steel with 10° Float, 4 Position Width Adjustable
 Adjustable Hydraulic Cylinder 4 in x 24 in (10.16 cm x 60.96 cm ), Double-Acting

BALE CONVEYOR  -
 Type Three roller chains with bolt-on cross slats
 Drive Hydraulic Orbital Motor with Hydraulic Flow Control Valve

BALE SHREDDER CHAMBER  -
 Max. Bale Size 6 ft long x 6-1/2 ft dia (1.83 m x 1.98 m)
 Max. Bale Weight each 2,200 lbs (998 kg)
 Rotor Length 78 in. (1.98 m)
 Rotor Diameter (Flails extended) 25 in (63.5 cm)
 Rotor Bearing Ball, 1-3/4 in (4.45 cm)
 Number of Flails 40
 Flail type Heavy Duty, Hardened Spring Steele, Swinging
 Re-Cutter Screen Type Helical-Slotted, Round (Sizes)
 Transfer Auger Dia. 12 in (30.48 cm)
 Number of Slug Bars 9-Optional, 10 Fixed
 Slug Bar Height Single Point Adjustment with 5 Settings

BLOWER FAN  -
 Size 44 in dia (112 m)
 Number of paddles 6(AR 400 Steele)
 Fan Lined with AR 400 Steele
