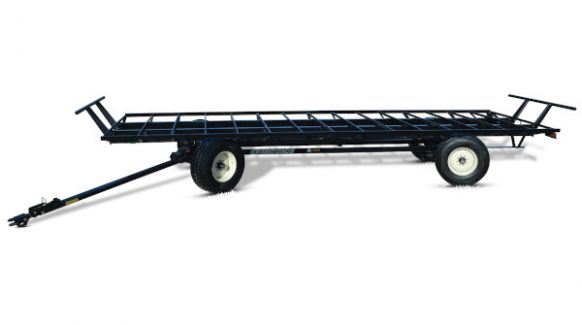

J&M Manufacturing Utility Hay Wagon
4-Wheel Steer Series Utility Hay Wagon
Overview:
Designed to go ANYWHERE and strong enough to get there.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Standard Features
- 30’ x 9’5” Steel Bed
- Capacity 32,000 lbs (16T)
- 16T 8 Bolt Oil Bath Hubs
- 16T 4 Wheel Steer Axles made from 4 x 8 x 3/8” Tubing
- Quick Hitch Cushion Tongue
- Triple Spring Tongue Lift Assist
- Light Kit
- Rear Hitch Support
- End Cradles
- SMV Sign
Optional Features
- 2 or 4 Wheel Hydraulic Drum Brakes
- Choice of Blue, Green, Red or Black Poly Urethane Finish
- Safety Chains
Specifications
| Capacity (Approx.) | 32,000 lbs. (16T) |
| Steel Bed | 30' x 9'-'5" |
| Hubs | 8 bolt - Oil Bath |
| Wheel Size | 22.5 x 13.5 - 8 Bolt |
| Tires (4) | 16.5 - 22.5 (425) Metric |
| Brakes | 2 or 4 Wheel Hydraulic Drum Brakes |
| Empty Weight | 4,900 lbs. |
