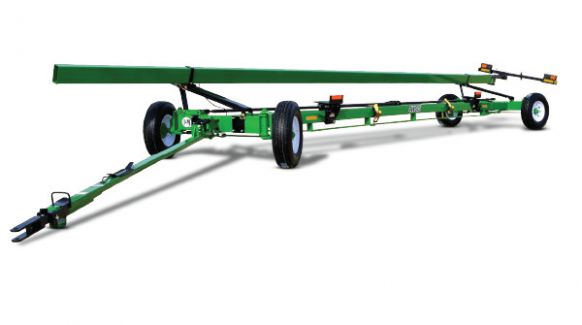

J&M Manufacturing HT-974
Low-Profile Series HT-974
Overview:
HT-974 Series transports feature an economical, low-profile design with front steering for quick and easy towing. Now, also available in heavy-duty 20' transports for folding corn and heads.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- For heads up to 25'
- 74" Center tread width
- 6 Hole hub
- 25' Steel upper bar
- Quick hitch tongue with spring assist
- Adjustable mounts
- Patented tie-down brackets with hook and strap assembly
- Light package
- 14"×6" wheels and 215/75R14D new tires
Specifications
| SPECIFICATIONS | HT-974 |
| Weight | 1,540 lbs. |
| Capacity (Net) | 7,500 lbs. |
| Spindle Size | 1 3/4" Diameter |
| Wheel Size | 14"x6" - 6 Bolt |
| Tire Size | 215/75R14D |
| Steel Upper Bar | 4"x6" |
| Upper Bar Length | 25' |
| Box Channel Axle Frame | 6" |
