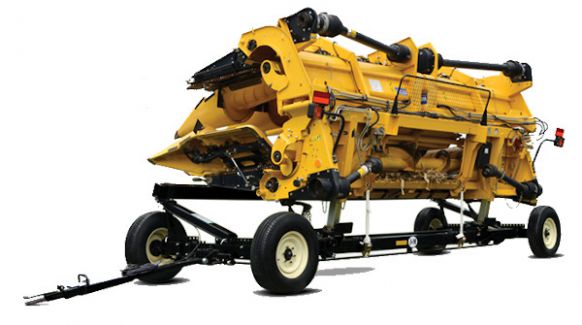

J&M Manufacturing HT-974-20
Low-Profile Series HT-974-20
Overview:
HT-974 Series transports feature an economical, low-profile design with front steering for quick and easy towing. Now, also available in heavy-duty 20' transports for folding corn and heads.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- For John Deere, Case IH, New Holland, Drago, and Geringhoff folding corn heads
- Shorter tongue
- Heavier capacity
- Truss under lower bar
- Thicker wall on upper bar
- 15"×6" wheels and 225/75R15E new tires
Specifications
| Model | HT-974-20 |
| Weight | 1,725 lbs |
| Capacity (net) | 11,000 lbs |
| Spindle Size | 1 3/4" Diameter |
| Wheel Size | 15" x 6" - 6 Bolt |
| Tire Size | 225/75R15E |
| Steel Upper Bar | 4" x 6" |
| Upper Bar Length | 20' |
| Box Channel Axle Frame | 6" |
