J&M Manufacturing TB-7000

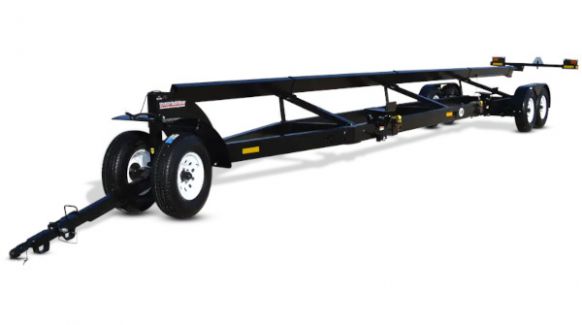

Trail-Blazer Series TB-7000
Overview:
Built with a stronger arched main frame, Trail-Blazer Models TB-6000 and TB-7000 header transports carry the heaviest heads quickly and easily.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 4"×8" Prestressed arched main frame
- 4"×8" steel upper bar
- Tricycle front steering axle
- Rear torsion-flex suspension axles
- Highway speed rated tires
- 4-wheel rear electric brakes
- Front and rear fenders
- Light package with SMV
- Ball hitch
- Breakaway brake kit
- Safety chain
- Tie-down brackets
- Adjustable header mounts
Specifications
| MODEL | TB-7000 |
| Weight | 6,616 to 6,770 lbs |
| Capacity (Net) | 19,350 lbs (Ag) 17,000 lbs (Highway) |
| Front Axle Spindle Size | Two 2¼" Diameter |
| Rear Axles Spindle Size | Four 2½" Diameter |
| Wheel Size | 16"×6"-8 Bolt |
| Tire Size | 235/85R16F |
| Steel Upper Bar | 6"×10" |
| Upper Bar Length | 48', or 52' |
| Arched Main Frame | 4"×8"×¼" Tubing |
| Rear Electric Brakes | Optional on Ag, Standard on Highway |
