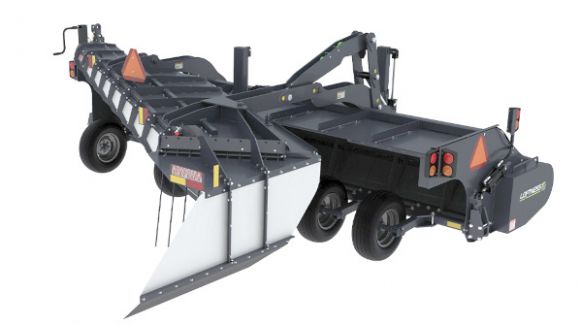

Loftness 240

Double tap to zoom



Air of Superiority

The Loftness Side Discharge Windrower features a patent-pending design that uses the powerful airflow from the shredder knives to convey shredded material to the discharge. This simple, yet effective, design significantly reduces the number of moving parts on the machine. This reduction in moving parts greatly reduces costly maintenance and downtime as well as reducing the occurrence of material plugs, bridging and wrapping that are possible with belt and auger style windrowers.

The Side Discharge Windrower works by creating a vacuum effect through the spinning of the 4.5-inch cupped knives. This suction helps lift residue into the knives for effective cutting performance, while helping to minimize the amount of dirt entering the machine. The powerful airflow coming off the knives is channeled by our patent-pending wing design to create a spinning air vortex that keeps the product suspended and carries it down the length of the wing to the discharge chute.

Two Windrows Are Better Than One

The side discharge allows you to double the size of your windrow by tightly placing two windrows next to each other in one round. Compared with a center discharge windrower, it can cut your baling passes in half. Plus, no raking is needed, which helps keep the windrows clean.


  • 20-Foot Cutting Width
    The Side Discharge Windrower has a 20-foot cutting width. When two windrows are placed side-by-side, you can bale 40 feet at a time.
  • Knives
    The rotor is equipped with 4-1/2-inch-wide cupped knives that maximize suction and provide the airflow needed to move the shredded material.
  • Folding Wing
    The specialized wing hydraulically folds for compact transport and storage.
  • 37-Inch Side Discharge
    The 37-inch side discharge features an adjustable deflector. The deflector rods can be easily raised to create a narrow windrow or lowered for a wider windrow.
  • Flow Deflectors
    Included flow deflectors help direct shredded material into a neatly placed windrow at the side of the unit.
  • Rear Lift
    A hydraulic rear lift precisely controls the cutting height. Cylinder stops are used to maintain a consistent height when raising and lowering the windrower. A ratchet jack near the hitch is used to adjust the tilt of the machine from front to back. For maximum performance, the knives should be positioned approximately 6 inches off the ground, while the rear rubber skirt should be 20-24 inches off the ground.
  • Adjustable Wheel Spacing
    The position of the rear wheels can be adjusted for various row spacings. For best results, the wheels should ride between the rows. The wheels are factory set for 30-inch row spacing.
  • 4-Groove Banded Belt
    A four-groove banded belt and spring-loaded push-type idler system provide efficient transfer of power.
  • 1,000 RPM PTO
    The 1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff includes a CV knuckle and overrunning clutch.
  • 280-Horsepower Gearbox
    The field-proven and extremely reliable gearbox is rated for 280 HP. It spins the rotor at 1,450 RPM.
  • Pull-Type Hitch
  • Heavy-Duty Construction
    The Side Discharge Windrower features heavy-duty design, engineering and construction throughout.
  • Optional Transport System
    An optional transport system includes a transport hitch at the end of the unit, as well as dedicated transport wheels, which can be hydraulically raised and lowered.
  • Optional Hood Liner
    The hood liner option helps extend service by providing added protection from abrasive materials.


Size 20'
Model 240
Cutting Width 240"
Overall Width* 255"
Height 91"
Max Length In Working 289"
Max Width In Transport 124"
Max Length In Transport 351"
Weight 12,500 lbs
Number of Rotors 2
Number of Knives (Cupped) 60
Number of Knives (High Residue) 112
Minimum HP 200
