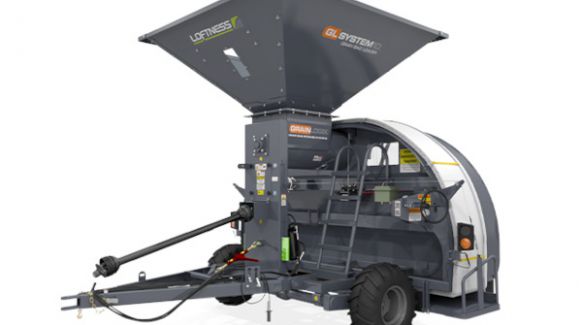

Loftness GBL 10

Double tap to zoom



  • Bag Retention System
    Maintaining a simple approach to a complex and important feature, the GBL 10 Bag Retention System removes all doubt regarding proper bag loading and rigging. The tensioning cord and ropes are adjustable for precise control in any application.
  • 20-Inch Main Auger
    The design of our main 20-inch discharge auger is optimized for maximum performance with 1/4-inch thick abrasive resistant steel flighting for long life. During operation, significant directional axial thrust loads are produced against the bearings. Loftness engineers designed the step-down shaft to properly offload these longitudinal forces.
  • Remote Controlled Bag Winch
    Installing the bag on the loader is made easy by the cradle’s 4,000-pound industrial-grade electric winch. Lifting the bag from ground level to the top of the tunnel is done with the push of a button, courtesy of a wireless remote that comes standard.
  • Bag Cradle
    The bag is lifted from ground level into position with the touch of a button using an electric winch. The operator can stand next to the cradle while operating for precise control. After the bag is loaded, the cradle conveniently folds up and stores inside the tunnel. An anti-slip ladder makes perfect bag placement possible.
  • Specialized Tunnel
    Proper grain distribution in conjunction with smooth and flawless bag feed is the starting point for precise control and nonstop operation. The one-piece tunnel is designed to distribute grain evenly throughout the profile of the bag.
  • Bag Pan
    The bag pan is lowered to install the bag into position around the tunnel. Once positioned, the bag pan is then raised into the proper operating position to support the bottom of the bag during filling. The bag pan can be fine-tuned by adjusting the turnbuckle.
  • Adjustable Height
    The hydraulic lift system is designed around a heavy-duty axle and is powered by dual 4-inch by 8-inch hydraulic cylinders.
  • Traction Tires
    Maintaining control and position with the terrain is achieved through huge 12.5L 15-inch SureGrip chevron-style traction tires.
  • Disc Brakes
    Complementing the precise brake pressure control system are large 12-inch diameter disc brake rotors and calipers. Used in the automotive racing industry, these brake components were chosen for their performance, high degree of reliability and availability. They feature an easy-to-bleed system.
  • Hand Wheel
    The hand wheel controls the master brake cylinder. It allows slight, precise brake pressure adjustment to both traction wheels simultaneously, helping to ensure the bag loads in a straight line. Pressure is displayed via a large liquid-filled pressure gauge mounted next to the control wheel.
  • Extra-Large Hopper
    The 8-foot by 8-foot hopper is an easy target to hit, helping reduce spillage. It can be loaded from either side or from both sides simultaneously. The hopper is all-steel construction and can take the bangs and dings of in-field use.
  • Auger Clean-Out Door
    When you’re finished using the grain bagger, use the easy-access door to clean grain out of the auger.
  • Fold-Up Hitch
    A fold-up hitch allows compact storage of the grain bag loader. The hitch comes complete with a jack stand.
  • Safety Warning Lights
    Proper lighting is included for safe road transport.
  • Standard Parts
    Industry standard, easy-to-get parts reduce downtime during your critical harvest window. Standard nonproprietary bearings, chains, U-joints and brake system parts are available at most farm, fleet or auto parts suppliers.
  • Chain Drive
    The power is transferred from the PTO shaft to the bag loading auger via a heavy-duty #80 chain-drive system. Chain drive shafts are supported by opposing dual greaseable bearings. An easy-open panel (no tools required) offers access to all drive system components.
  • Drive Shaft
    Power to the drivetrain is delivered through a Walterscheid W2400 Series extra-long shaft that is protected by an easily accessible shear bolt. Power is delivered to the discharge auger shaft by a heavy-duty chain.
  • 50 HP/540 PTO RPM Requirement
  • Optional Work Light Kit
    Don’t let the dark slow down your bagging operation. The optional work light kit includes three magnetically mounted LED lights, each producing 2,400 lumens.
  • Optional Roll Tarp
    Roll top covers are fast, simple and smooth. The one-man operation of the roll top canvas is done from the ground, through the permanently mounted and storable extension crank. The rolled-up tarp stores neatly out of the way. It can be supplied by ACI or Shur-co.
  • Optional Truck Unloading Auger
    Load grain bags from grain trailers and semis with the 10-Foot Truck Unloading Auger.


Grain Bag Loader Model Number GBL 10
Unit Weight 4,030 lbs
Tractor Requirement
Without Truck Unloading Auger
50 HP - 540 PTO
Wireless Remote Included lanyard - part N30865
Operating Dimensions
Length 14'1"
Width 12' 10"
Height 10' 9"
Storage/Travel Dimensions
Length 14' 1"
Width 12' 10"
Height 10' 9"
Hopper Dimensions
GBL 10 Loader 8' 4" X 8' 8-1/2"
RPM 540
Horsepower 50
Shaft Size/Type 6-B Spline
PTO Driveline Type Weasler 35R
GPM (required) 6
PSI (required) 2,000
Connector Type Quick Couplers
Auger Sizes
Primary Auger 20" / 385 RPM
Op. Wheels/Size/Type 33" 12.5L-15, SureGrip
Transp. Wheels/Size/Type 31" 9.5L-15 Implement
Transfer Capacity 30,000 Bushels/hr
Bag Handling Capacity
Diameter 10' Bags
Max. Length 300'

Specifications and data are subject to change without notice.
