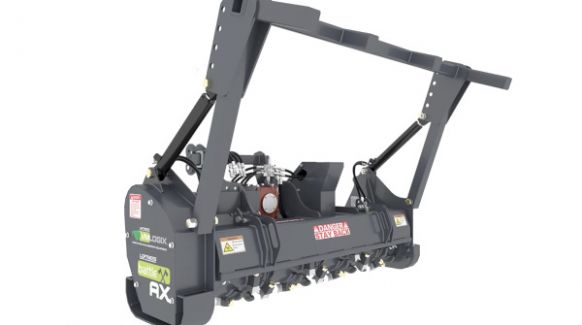

Loftness BT20

Double tap to zoom



  • Depth Gauges
    The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
  • Two-Stage Cutting Chamber
    Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes.
  • Convenient Tooth Mounting
    The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
  • High-Performance Teeth Options
    Choose from 4-point beaver teeth, Quadco reversible planer blades or double carbide teeth.
  • Staggered/Spiral Tooth Pattern
    This exclusive tooth arrangement ensures single-tooth contact with the work surface at all times while maintaining optimal rotor balance.
  • 3-Point Hitch
    The Battle Ax Tractor hitch is adaptable from Cat I to Cat II, free-link or quick hitch. The mulcher can be centered or positioned 16 inches offset to the right.
  • PTO Kickout
    A cam-type PTO kickout protects the gearbox from damage without a clutch pack.
  • Machined Anti-Wrap Bearing Protection
    Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
  • Premium Strength Steel Housing
    The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
  • Steel Deflector Chains
    Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
  • Adjustable Push Bar (Optional)
    A manually adjustable tree pusher bar with welded claw hooks is available.
  • Containment Door (Optional)
    A containment door option helps prevent the mulcher from projecting material underneath the tractor.
  • Deflector Door (Optional)
    The Battle Ax Tractor can be equipped with a deflector door for more thorough processing and direct discharge toward the ground.
  • 13.5-Inch Cutting Tip Diameter
  • 3-B Section Banded Belt With Spring-Loaded Tensioner
  • 1/4″ End Plates
  • 3/16″ Hood
  • 1-3/4″ Piloted Double Taper Roller Bearings
  • 2-Year Warranty
    The Battle Ax comes standard with an industry-leading 2-year warranty.


Model BT20
Cutting Width 61" (1.6 m)
Overall Width 77" (1.8 m)
Number of Teeth 38
Weight (Includes Hydraulic Pusher) 1,675 lbs (760 kg)
Deflector Door Weight (Optional) 86 lbs (39 kg)
Containment Door Weight (Optional) 207 lbs (94 kg)
PTO Horsepower Range 45-70
