Meyer Farm XTSS4500+ Tridem Trailer / Suspension Steer Trailer - 45 Ton
Chassis / Tridem XTSS4500+ Tridem Trailer / Suspension Steer Trailer - 45 Ton
Overview:
The Meyer XTSS4500+ Tridem Suspension / Steer Trailer features a Heavy Duty tubular frame with 45 ton capacity. It is specifically designed for faster road speeds of today's modern ag tractor. It is also better suited for long hauls from the field to the farm compared to traditional ag trailer & wagons. Suspension... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- XTSS4500+ Series Upgraded!
This new "Plus" Series XTSS Tridem Suspension / Steer Trailer received a host of upgrades to the hitch frame, structure, axle system, scale mounts and more! - HD Tubular Frame

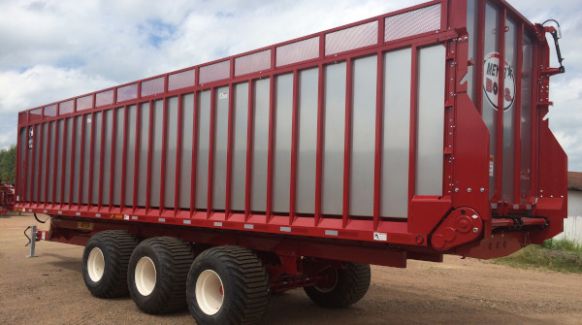

The Meyer XTSS4500+ Tridem Trailer Chassis features a massive 4x8" tubular frame in two different lengths to accommodate your application. Typically use for 9130RT & 9136RT silage boxes or 9530 Crop Max spreaders with 30 - 36' of load space. - Robust Hitch Assemblies
Meyer XTSS trailers feature a strong 6x8" tubular hitch system which is heavily fortified to handle the load. - Suspended Axles Standard on XTSS / Front & Rear Steerable
HD 33,000# suspension axles are standard on this model as well as front and rear axle steering providing a smooth ride, less stress and reduced tire wear. - Tire Options
The XTSS4500+ Trailer can be ordered with 600/50x22.5 or the more popular 700/40x22.5 bar tire package. - Locking Rear Axle
The front and rear steer axle feature a locking mechanism to aid in backing up or long distance forward travel out of the field. (Hydraulically activated from the cab) - Brake Choices
XTSS Meyer Trailers come standard with a drum brake feature. You can choose from manual activated hydraulic brakes or foot pedal activated if your tractor is properly equipped. - Standard Articulating Implement Hitch
This HD Cast Articulating Implement Hitch is standard equipment on the XTSS4500+. It offers excellent flexibility for uneven terrain and does require a hammer strap tractor draw-bar. (Accepts 1.5 or 2" pin) - Scale Options
The Meyer XTSS Series Trailer can be outfitted this handy scale arrangement. It features a 10 cell system mounted between the trailer and the implement.
Specifications
| Model | XTSS4500 315 | XTSS4500 390 |
| Style | Tridem Suspension Steerable | Tridem Suspension Steerable |
| Suspension | Leaf Spring | Leaf Spring |
| Capacity (Trailer & Load) | 90,000# | 90,000# |
| Tread Width | 100.6" w/710/45x22.5 | 100.6" w/710/45x22.5 |
| Spindle Size | 5.9" Axle | 5.9" Axle |
| Axle Configuration | Tridem - Steerable 33,000# x 3 | Tridem - Steerable 33,000# x 3 |
| Heavy Duty Hubs | 10 Bolt - Grease Filled | 10 Bolt - Grease Filled |
| Frame Design | 4x8x1/4" Tubing | 4x8x1/4" Tubing |
| Weight | 13,650# w/710/45x22.5 | 14,090# w/710/45x22.5 |
| Overall Length | 34' | 40' 3" |
| Bed Length | 26' 9" | 32' 9" |
| Overall Width | 128" w/710/45x22.5 | 128" w/710/45x22.5 |
| Bed Width | 42" | 42" |
| Stake Spacing | 33.5" Std 42" Opt | 33.5" Std 42" Opt |
| Bed Height | 53 1/2" w/710/45x22.5 | 53 1/2" w/710/45x22.5 |
| Articulating Imp Hitch | Standard- Requires 1.5 or 2" pin Hammerstrap style hitch | Standard- Requires 1.5 or 2" pin Hammerstrap style hitch |
| Brakes | Hydraulic Manual Hydraulic Foot Pedal | Hydraulic Manual Hydraulic Foot Pedal |
| Hitch and Hitch Supports | Extra Heavy Duty | Extra Heavy Duty |
| Various Tire Sizes | 710/45x22.5 710/50x26.5 | 710/45x22.5 710/50x26.5 |
| Saftey Chain | Optional | Optional |
