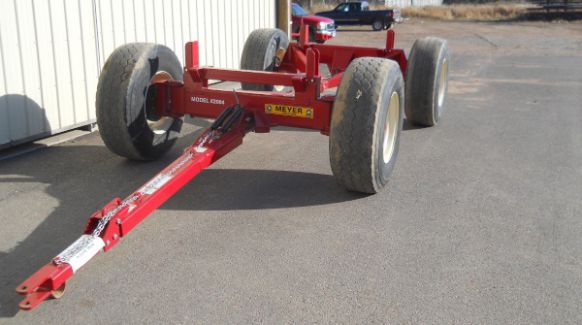

Meyer Farm X2004

Double tap to zoom



Features

HD 4x10" Tubular Bolsters

All Meyer wagons feature tubular bolster beams front and rear to carry the load, not formed channel like other brands!

Robust Frame

Meyer wagons put iron where you need it.  This wagon has been designed and engineered for your toughest tasks.   It's been torture tested and field proven!

C-Section Reach

This HD C-Section Reach provides flexibility and strength (5" wide).  No rotating collars to wear out!

Precision Steering

Meyer X2004 wagons feature a heavy duty steering system with a massive vertical king pin, large block steering stop and a solid, single tie rod.  It is greasable in all pivot points.

T-Type Trunion Steering

This T-Type steering design provides added strength and accuracy.  The vertical steering pin has replaceable bushings along with a lower thrust bearing for ease of steering while eliminating stress on critical parts.  All moving parts and tie rod ends are greasable.

HD Adjustable Tongue

All Meyer wagons feature an adjustable tongue assembly to match your application.  The speed hitch arrangement makes for quick hook-ups.  Spring assist is a standard feature on all models.

HD Hubs & Spindles

No skimping here:  The X2004 features 3 1/2" straight spindles sporting 15,000#, 10 bolt hubs!

High Capacity Steering Components

1" steer arms, a solid-single tie rod and solid cast tie rod ends with 1" fine thread bolts to mate the system together.

Brake Package

A 4 wheel surge brake package is available for the X2004 model gear.



Specifications

Model X2004
Capacity 20 ton
Weight w/ tires 3,250# w/trk tires
Tread Width 86.5"
Spindle Diameter 3.5"
Hub Size 10 Bolt 15,000#
Bolster Size / Height 4" x 10" tube 36.75" w/Trk Tires
Reach Size 5" Wide x 112"L opt. 136"
Wheel Base 117" to 165"
Quick Hitch Pole Standard w/ spring asst.
Pole Adj. 84" - 110"
Hyd. Surge Brakes Optional
