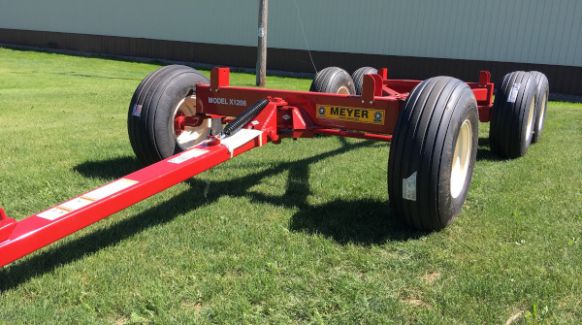

Meyer Farm 12 Ton Tandem Axle - X1206

Double tap to zoom



Features

HD 4x8 Bolsters

All Meyer wagons feature a tubular bolster beam front and rear to carry the load.  Not formed channel like most other brands!

C Section Reach

The C-Section Reach provides flexibility and strength.  No rotating collars to wear out.

Impressive Steering System

This precision engineered steering system features a solid, HD single tie rod for consistent trailability in and out of the field.  Heavy duty steer stops provide protection.

Tie Rod Ends

These cast tie rod ends are attached to strong spindle steer arms using 1" fine threaded bolts and lock nuts!   Compare this setup to the other guys!

HD Adjustable Tongue

All Meyer wagons feature an adjustable tongue assembly to match your application.  The speed hitch arrangement makes for quick hookup.   Spring assist is standard equipment.

Oscillating Tandem Beam

This sturdy pivoting tandem wing soaks up bums and uneven terrain.   Tandem gears typically provide a smoother ride than a 4 wheel wagon.

Hubs / Spindles

HD 6 bolt hubs are standard on the X1206 model along with 2" spindles to handle the load.

Tire options

Meyer wagon gears can be ordered with no tires or rims / rims only / tires & wheels - your choice!  11Lx15 or 12.5Lx15 tire/wheel packages available from the factory.



Specifications

Model X1206
Capacity 12 ton
Weight w/ tires 1,525# w/12.5L
Tread Width 76"
Spindle Diameter 2"
Hub Size 6 Bolt 4570#
Bolster Size / Height 4" x 8" tube 28" w/12.5L
Reach Size 4" wide x 88" L Opt. 112"
Wheel Base 93" to 141"
Quick Hitch Pole Standard w/ spring asst.
Pole Adj. 97"-115"
Hyd. Surge Brakes N/A
