Meyer Farm RTX222

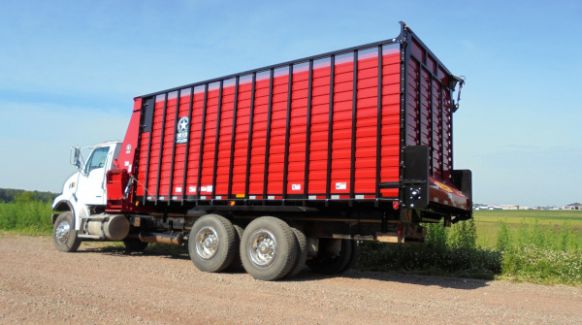

RTX200 Front & Rear Unload Forage Box RTX222
Overview:
The Meyer RTX200 Series Front & Rear Unload Forage Box features a 7'5" inside width, HD all steel frame, high speed - variable drive, HD bevel gear-drive, poly floor, high sides, 4 beaters, rear gate delay and more! Wagon, Cart or Truck Mount models are available. It offers more capacity, more speed and more options... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Wagon - Trailer - Truck Mount options
- HD steel frame with tubular floor supports on 16" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.
- Standard RTX includes: Open Top, high sides, 4th beater, fold-down cross conveyor ext, solid poly floor and gate delay!
- RTX Models come standard as Open Top / Roof is optional
- Variable speed RT Belt Drive standard - featuring our new, high-efficiency bevel gear-drive system which offers clean-out speed up to 17'/minute!
- Optional basic hydraulic drive or cab-controlled hydraulic drive are popular options on trailer and truck mounted units. (Cab Controlled pictured)
- Spring loaded chain tension with nylon paddle tighteners on all roller chains (main drive & auger drives).
- HD 2" front and rear main drive shafts with machined drive sprockets - tough stuff!
- 18" diameter drum augers in a tapered formation provide a smooth mat of product to the discharge conveyor.
- 24" wide pintle conveyor cross conveyor provides an even discharge to your blower or bagger without the buildup associated with roller chain designs. Fold-down extension and conveyor hold-downs are standard!
- Feather start controls including cross apron / augers / main apron. No jaw clutch starts like other brands
- Solid Poly Floor - high molecular virgin poly (not reground)!
- Spring-loaded, torsion style apron tension is centrally located under the floor giving you complete chain wrap on drive sprockets. Less strain on your aprons means longer life!
- Patented Direction Control System (DCS) offers front to rear unload switching with no coupler or pin change. NO HASSLE HERE!
- RTX200 Models utilize hydraulic power & a HD bevel geardrive to tow the load (no roller chain reductions). Rear door opens and closes without assistance.
- Rear Gate Delay is Standard on RTX - Reduces unload time / saves aggrevation / no adjusting.
- LED turn signal lighting standard
- Grain Kit Option
This effective grain kit attaches easily and comes with a hydraulic variable speed valve to control apron speed from the rear of the box. WORKS GREAT / MULTI-PURPOSE! - False Front Panel
Generally used in conjuction with the rear mounted grain kit, this panel keeps grain from flowing into the front conveyor area. - RH Side Hood Deflector package reduces "blow by" and operator fatigue!
- Electric front to rear or side to side tarps available. (require front enclosure)
- Scale Packages Available
Makes recording keeping a snap!
Specifications
| Front & Rear Unload | RTX222 |
| Dimensions | |
| Floor Length | 22' 6" |
| Overall Length | 26'7" |
| Inside Height (w/o roof) - std height | |
| - high sides | 7'3" |
| Overall Height (w/o roof) | |
| top of side - std height | |
| - high sides | 106" |
| top of door pivot (RT/RTX200 only) std height | |
| high sides | 115" |
| Less 4" truck & trailer mounts (except on XT1600 trailer*) | |
| Overall Height (w/roof) - wagon mount version | |
| - std height | |
| - high sides | 126.5" |
| Inside Width | 89.5" |
| Overall Width w/conveyor extension up | 109.5" |
| Stringer Width/Height | |
| Truck/XT2200 Trailer Mount | 33.5"/6" |
| Wagon Mount | 42"/10" |
| Capacity (struck level) cu. ft. w/o roof | |
| - (6'3) std height | |
| - (7'3) high sides | 1217 |
| Capacity cu. ft (with roof) | |
| - (6'3) std height | |
| - (7'3) high sides | 1456 |
| Specifications | |
| Front Apron Drive Shaft | 2" |
| Tubular Upright Spacing | 16" |
| All Steel Frame - 24" centers (no wood) | Std 16" |
| HD Tubular Floor Supports | 2x2 |
| HD Top Rail Formed (no side supports needed) | Std |
| Commercial Grade Geardrive (no worm gears) | Std |
| Standard Features | |
| RT Variable Speed System - 0-17'/minute (PTO drive standard) | Std |
| Apron Chains (heavy duty pintle) | 667X |
| Spring Loaded/Torsion Style Apron Tightener (RT/RTX200) | Std 222 |
| Direction Control System (patented) | |
| Front to Rear Selection with No Coupler Change | Std 222 |
| Auger Feathering System & Conveyor Clutch/Safety Clutch | Std |
| Cross Conveyor Chain Hold-Downs | Std |
| Fold-Down Conveyor Extension w/ Lift Assist | Std |
| Superslide, Solid Poly Floor (no plywood) (RT/RTX200, RTX600) | Std |
| 12" Higher Sides w/4th Beater System | Std |
| Rear Gate Delay System (RTX200) | Std 222 |
| Optional Equipment | |
| Hydraulic Front Drive System (in lieu of PTO) | Opt |
| Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor | Opt |
| 36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") | Opt |
| Hydraulic Lift Option for Fold Down Cross Conveyor Extension | Opt |
| Roof Assembly (removable) | Opt |
| Roof Hood Assembly (right hand, open top units only) | Opt |
| Rear Grain Kit (RT/RTX200 only) | Opt 222 |
| False Front Gate for Grain Kit | Opt |
| Truck Mount/Trailer Mount/Wagon Mount | Opt |
| Tarp Systems (w/front enclosures) | |
| Front to Back Scissor Tarp (electric) | Opt |
| Side to Side Roll Tarp (electric) | Opt |
| Clad Tuff Fiberglass Sides & Back | Opt |
