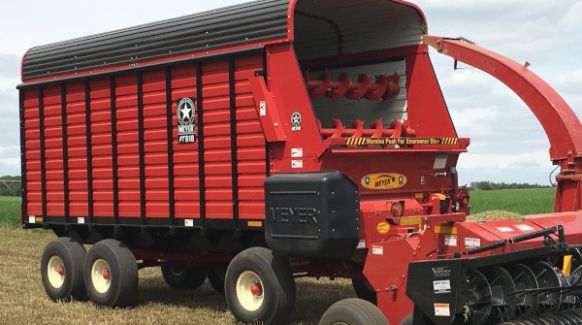

Meyer Farm RT616

Double tap to zoom



Features

  • Wagon - Trailer - Truck Mount options
  • HD Steel Frame with tubular floor supports on 24" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports when roof is removed.
  • Removable Roof standard / open top optional
  • Variable Speed RT belt drive standard equipment - featuring our new, high-efficiency bevel gear-drive system which offer clean-out speeds up to 17' / minute. New RT Auger Drive feature consistent auger speed based throughout the range.
  • Spring-loaded roller chain tensioning w/ nylon paddle tightener on primary drive and auger drives
  • Hydraulic In-Cab Control Option - The cab-controlled hydraulic drive provides a safe, convenient way to operate your RT Series front unload box.   It also eliminates all belts and most roller chains and bearings associated with the manual belt drive!  (requires 25 gpm min)
  • HD 2" main drive shaft with machined drive sprockets - tough stuff!
  • Wide Discharge -  This 24" wide conveyor utilizes a pintle apron for an even discharge to your blower or bagger while reducing buildup commonly seen with roller chain conveyors. Chain hold-downs run full length and are standard equipment.
  • Fold-Down Cross Conveyor Extension - This feature makes for easy approaches to the bagger or blower with less spillage while unloading.   Standard on RT600 models.
  • 18" Diameter drum augers in a tapered formation provide a smooth mat of feed to the discharge conveyor.
  • Feather start controls including cross apron / augers / main apron. No jaw clutch starts like other brands!
  • Solid Poly Floor - Meyer RT600 Forage Boxes come standard with a solid poly floor (no plywood)!   This system reduces drag by approximately 30% plus provides much faster cleanout.   Don't forget that all RT & RTX boxes have 100% steel floor supports too - no wood like many others.
  • High capacity options include 6" taller roof package - Allow for easier filling on longer models and more capacity.  Roof is removable as is the standard roof system!
  • 4th beater is optional with 12" taller side package - This 12" taller side package is available with or without a roof.  It is a perfect match when using a SP chopper for front filling or anytime you desire more capacity.   4th beater available with 12" taller side.   (not available in conjunction with 6" taller roof)
  • LED lighting is Standard

Specifications

Dimensions RT616
Floor Length 16'6"
Overall Length 19'8"
Inside Height (w/o roof) - std height 6'3"
                                - high sides 7'3"
Overall Height (w/o roof)
       top of side            - std height 94"
                                 - high sides 106"
  *Less 4" truck & trailer mounts
 (except on XT1600 trailer)
*
Overall Height (w/roof) - wagon mt.
                                    - std height
114.5"
                                 - high sides 126.5"
Inside Width 89.5"
Overall Width w/conveyor extension up 109.5"
Stringer Width/Height
  Truck/XT2200 Trailer Mount 33.5"/6"
  Wagon Mount 42"/10"
Capacity (struck level) cu. ft. w/o roof
              - (6'3) std height
769
              - (7'3) high sides 892
Capacity cu. ft (with roof)
              - (6'3) std height
944
              - (7'3) high sides 1067
Specifications
Front Apron Drive Shaft 2"
Tubular Upright Spacing 24"
All Steel Frame - 24" centers (no wood) 24"
HD Tubular Floor Supports 2x2
HD Top Rail Formed (no side supports needed) Standard
Commercial Grade Geardrive (no worm gears) Standard
Standard Features
RT Variable Speed System - 0-17'/minute (PTO drive standard) Standard
Apron Chains (heavy duty pintle) 667X
Auger Feathering System & Conveyor Clutch/Safety Clutch Standard
Cross Conveyor Chain Hold-Downs Standard
Fold-Down Conveyor Extension w/ Lift Assist Standard
12" Higher Sides w/4th Beater System Optional
Optional Features
Hydraulic Front Drive System (in lieu of PTO) Optional
Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor Optional
36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") Optional
Hydraulic Lift Option for Fold Down Cross Conveyor Extension Optional
Roof Assembly (removable) Standard
6" High Roof Assembly (removable) - not available 12" higher sides Optional
Roof Hood Assembly (right hand, open top units only) Optional
Truck Mnt./Trailer Mnt./Wagon Mnt. Optional
Tarp Systems (w/front enclosures)
  Front to Back Scissor Tarp (electric)
  Side to Side Roll Tarp (electric)
Optional
Clad Tuff Fiberglass Sides & Back Optional
Superslide, Solid Poly Floor (no plywood) Optional
