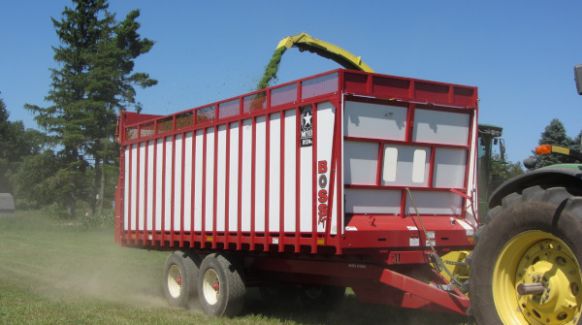

Meyer Farm 8126RT

Double tap to zoom



Features

FAST – STABLE – SAFE unloading of your materials (no hoist)

18-20-22-24-26’ models / interior width 97” for max capacity per running foot!

HD fully welded frame @ 16” centers to handle heavy loads while maintaining a low center of gravity!

Hyd Gear-drive System offers efficient, fast unloading with no roller chains / big 2 3/8” driveshaft (8126RT features dual gear drive like 9100RT)

Clad-Tuff fiberglass woven side panels provide practicality, corrosion resistance and good looks.

Solid poly floor – high molecular virgin (not reground!)

Top Pivot rear door standard with gate delay - Barn Doors with hyd or air closure optional

LED lighting - (signal light standard / marker & clearance lights w/DOT tape optional)

Integrated dual front viewing window

Farm name on box sides standard

High Gloss urethane paint finish (Red standard / Black optional)

Electric front to rear or side to side tarp packages available

Effective Grain Kit attachment option / quick – easy – multi-purpose!

Reversing apron package available for bale hauling

Specifications

DIMENSIONS 8126RT
Inside Length 26'
Inside Width 97"
Inside Height - no extension 72"
Inside Height w/14" extension 85.5"
Overall Length 27'1"
Overall Width 102"
Overall Height - no extension (top of gate)* 103.5"
Overall Height w/14" extension (top of gate)* 115.5"
Overall Side Height - no ext. / with ext.* 88.25/102"
Stringer Width (Truck/Trailer Mount) 33.5"
Capacity (struck level) Cu. Ft. - w/o ext. 1260
Capacity (struck level) Cu. Ft. - w14" ext. 1495
SPECIFICATIONS
Maximum Net Load (off road rating) 25 ton
Apron Chains (Pintle) 667XH
Rear Drive Shaft 2-3/8" HD SOLID SHAFT
Power Source / DIRECT GEARDRIVE Hyd. / Dual
Upright Spacing 16" on Cntr
Upright / Cross member Construction 2x2 Tubing
Unloading Time (Dependent of Hyd. System) 50 sec.
FEATURES
Clad-Tuff Fiberglass Woven Side Panels Standard
Stainless Steel Sides Panels Optional
Solid Poly Floor - High Molecular Standard
Rear Gate Delay System *new RT design!! Optional
Automatic Rear Door Unlatch / Latch Standard
Hydraulic Drive Standard
Double Viewing Window in front gate Standard
Rear Transport Lights - LED (new location) Standard
Marker/Clearance Lights (LED) & D.O.T. Tape Optional
Personalized Farm Name on Sides Standard
OPTIONS
14" Removable Side Extension (screen or solid) Optional
+Fold-down Front Extension optional
Double Center Opening Doors Hyd./Air (Barn Doors) Optional
Grain Kit / Quick Attach for Top Pivot Door Optional
Grain Kit / Quick Attach for Barn Door Gate Optional
Side-mtd, LED Turn Signals in addition to std Optional
Reversing Apron Feature Optional
Side Hood Deflector/backstop (RH side) Optional
Black paint in lieu of Red Optional
Truck Mount Kit w/Steel Fenders Optional
Factory Install of Truck Mount Kit Optional
Wagon/Trailer Mount Kit Optional
TARP SYSTEMS
Front to Back Scissor Tarp (electric) Optional
Side-to-Side Roll Tarp (electric) Optional
*Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above
