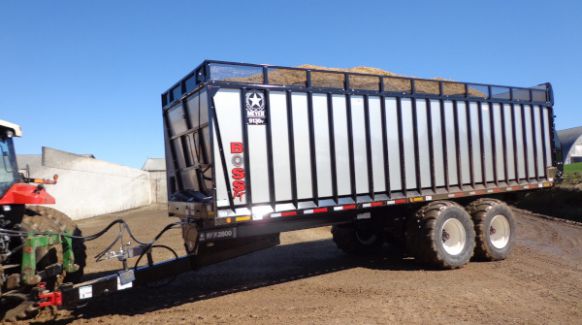

Meyer Farm 9128RT
Double tap to zoom
The 9100RT BOSS Series is based on a similar design to our 8100RT Series with these upgrades:
Dual hydraulic gear-drive - Stainless steel side panels - Reinforced, enclosed side frames, Marker & clearance lighting and Standard rear gate delay!
Trailer Mount applications available in 24, 26, 30 & 36' lengths. Tandem 24/26/30' - Tridem 30/36'
Truck Mount versions available in 24, 26, 28, 30 or 32' lengths. Big Time Capacity!
FAST - STABLE - SAFE unloading of your materials - NO HOIST!
HD fully welded frame @ 16" centers to handle heavy loads while maintaining a low center of gravity.
Dual Hydraulic Gear-drive System offers efficient, fast unloading with NO ROLLER CHAINS / big 2 3/8" driveshaft! (semi trailer pictured)
Stainless Steel side panels provide practicality, corrosion resistance and good looks!
Solid poly floor - high molecular virgin (not reground)!
Reinforced, enclosed side frames - marker & clearance lights with DOT tape standard
Top Pivot gate standard / Barn Door gate optional - both feature automatic open / close! (semi trailer pictured)
Integrated dual front viewing window / HD tubular frame front gate assembly
Farm Name on Sides - Standard
This unit is equipped with an optional RH Roof Hood as well.
High Gloss urethane paint finish - Sharp!
Meyer Red is standard / Black is a no-charge option on the BOSS Series.
Grain Kit Option
This effective Grain Kit package is available for all 8100/9100RT BOSS units. It comes with the hopper, hydraulic flow control and necessary seals. WORKS GREAT TOO!
Electric front to rear or side to side tarp packages available
Reversing Apron Option
This feature is handy for hauling bales or partial loads. (typically sold with barn door rear gate)
Scale options: Basic or Forage Tracker
|Inside Length||28' 8"|
|Inside Height - no extension||72"|
|Inside Height w/14" extension||85.5"|
|Overall Height - no extension (top of gate)*||103.5"|
|Overall Height w/14" extension (top of gate)*||115.5"|
|Overall Side Height - no ext. / with ext.*||88.25/102"|
|Stringer Width (Truck/Trailer Mount)||33.5"|
|Capacity (struck level) Cu. Ft. - w/o ext.||1390|
|Capacity (struck level) Cu. Ft. - w14" ext.||1640|
|Maximum Net Load (off road rating)||27 ton|
|Apron Chains (Pintle)||667XH|
|Rear Drive Shaft||2-3/8" HD SOLID SHAFT|
|Power Source / DIRECT GEARDRIVE||Hyd. / Dual|
|Upright Spacing||16" on Cntr|
|Upright / Cross member Construction||2x2 Tubing|
|Enclosed Side Frame/Cross Member Union||Standard|
|Unloading Time (Dependent of Hyd. System)||50 sec.|
|Stainless Steel Sides Panels||Standard|
|Solid Poly Floor - High Molecular||Standard|
|Rear Gate Delay System *new RT design!!||Standard|
|Automatic Rear Door Unlatch / Latch||Standard|
|Double Viewing Window in front gate||Standard|
|Rear Transport Lights - LED (new location)||Standard|
|Marker/Clearance Lights (LED) & D.O.T. Tape||Standard|
|Personalized Farm Name on Sides||Standard|
|14" Removable Side Extension (screen or solid)||Optional|
|+includes fold-down front ext. except w/tarp|
|Double Center Opening Doors Hyd./Air (Barn Doors)||Optional|
|Grain Kit / Quick Attach for Top Pivot Door||Optional|
|Grain Kit / Quick Attach for Barn Door Gate||Optional|
|Side-mtd, LED Turn Signals in addition to std||Optional|
|Reversing Apron Feature||Optional|
|Set Back Axle Design / Air Lift Pusher Axles||N/A|
|Side Hood Deflector/backstop (RH side)||Optional|
|Black paint in lieu of Red||Optional|
|Truck Mount Kit w/Steel Fenders||Optional|
|Factory Install of Truck Mount Kit||Optional|
|Wagon/Trailer Mount Kit||N/A|
|Front to Back Scissor Tarp (electric)||Optional|
|Side-to-Side Roll Tarp (electric)||Optional|
|*Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above|
