Meyer Farm 9132RT

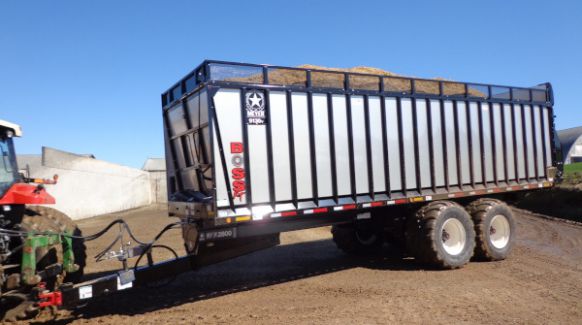

9100 RT BOSS Truck / Cart Mount 9132RT
Overview:
This productive box features a hydraulic dual geardrive design for fast, safe and efficient transport and discharge of your product. Stainless steel sides, poly floor, gate delay and LED lighting are all standard equipment.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 9100RT Upgrades
The 9100RT BOSS Series is based on a similar design to our 8100RT Series with these upgrades:
Dual hydraulic gear-drive - Stainless steel side panels - Reinforced, enclosed side frames, Marker & clearance lighting and Standard rear gate delay! - Trailer Mount applications available in 24, 26, 30 & 36' lengths. Tandem 24/26/30' - Tridem 30/36'
- Truck Mount versions available in 24, 26, 28, 30 or 32' lengths. Big Time Capacity!
- FAST - STABLE - SAFE unloading of your materials - NO HOIST!
- HD fully welded frame @ 16" centers to handle heavy loads while maintaining a low center of gravity.
- Dual Hydraulic Gear-drive System offers efficient, fast unloading with NO ROLLER CHAINS / big 2 3/8" driveshaft! (semi trailer pictured)
- Stainless Steel side panels provide practicality, corrosion resistance and good looks!
- Solid poly floor - high molecular virgin (not reground)!
- Reinforced, enclosed side frames - marker & clearance lights with DOT tape standard
- Top Pivot gate standard / Barn Door gate optional - both feature automatic open / close! (semi trailer pictured)
- Integrated dual front viewing window / HD tubular frame front gate assembly
- Farm Name on Sides - Standard
This unit is equipped with an optional RH Roof Hood as well. - High Gloss urethane paint finish - Sharp!
Meyer Red is standard / Black is a no-charge option on the BOSS Series. - Grain Kit Option
This effective Grain Kit package is available for all 8100/9100RT BOSS units. It comes with the hopper, hydraulic flow control and necessary seals. WORKS GREAT TOO! - Electric front to rear or side to side tarp packages available
- Reversing Apron Option
This feature is handy for hauling bales or partial loads. (typically sold with barn door rear gate) - Scale options: Basic or Forage Tracker
Specifications
| DIMENSIONS | 9132RT |
| Inside Length | 32'8" |
| Inside Width | 98" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 3'9" |
| Overall Width | 102" |
| Overall Height - no extension (top of gate)* | 103.5" |
| Overall Height w/14" extension (top of gate)* | 115.5" |
| Overall Side Height - no ext. / with ext.* | 88.25/102" |
| Stringer Width (Truck/Trailer Mount) | 33.5" |
| Capacity (struck level) Cu. Ft. - w/o ext. | 1590 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 1865 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 27 ton |
| Apron Chains (Pintle) | 667XH |
| Rear Drive Shaft | 2-3/8" HD SOLID SHAFT |
| Power Source / DIRECT GEARDRIVE | Hyd. / Dual |
| Upright Spacing | 16" on Cntr |
| Upright / Cross member Construction | 2x2 Tubing |
| Enclosed Side Frame/Cross Member Union | Standard |
| Unloading Time (Dependent of Hyd. System) | 50 sec. |
| FEATURES | |
| Stainless Steel Sides Panels | Standard |
| Solid Poly Floor - High Molecular | Standard |
| Rear Gate Delay System *new RT design!! | Standard |
| Automatic Rear Door Unlatch / Latch | Standard |
| Hydraulic Drive | Standard |
| Double Viewing Window in front gate | Standard |
| Rear Transport Lights - LED (new location) | Standard |
| Marker/Clearance Lights (LED) & D.O.T. Tape | Standard |
| Personalized Farm Name on Sides | Standard |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | Optional |
| +includes fold-down front ext. except w/tarp | |
| Double Center Opening Doors Hyd./Air (Barn Doors) | Optional |
| Grain Kit / Quick Attach for Top Pivot Door | Optional |
| Grain Kit / Quick Attach for Barn Door Gate | Optional |
| Side-mtd, LED Turn Signals in addition to std | Optional |
| Reversing Apron Feature | Optional |
| Set Back Axle Design / Air Lift Pusher Axles | N/A |
| Side Hood Deflector/backstop (RH side) | Optional |
| Black paint in lieu of Red | Optional |
| Truck Mount Kit w/Steel Fenders | Optional |
| Factory Install of Truck Mount Kit | Optional |
| Wagon/Trailer Mount Kit | Optional |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | Optional |
| Side-to-Side Roll Tarp (electric) | Optional |
| *Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above |
