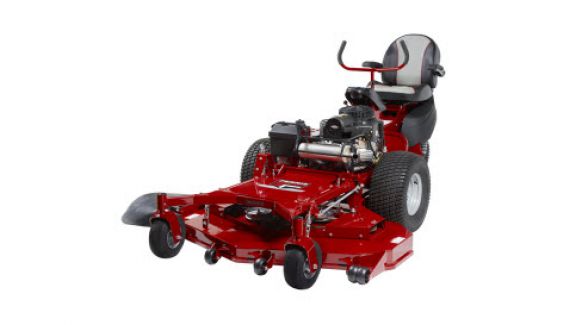

Ferris H2224KAV w/R61 / NOT AVAILABLE

Double tap to zoom



Features

  • Acres Per Hour
    Mows up to 4 acres per hour, based on 80% efficiency.

  • Aluminum Spindles
    Features greaseable aluminum spindles for longer useable life.

  • Easy Cut Height Adjustment
    Quick-adjust height of cut control sets cut height in one easy step.

  • Electric Deck Lift
    The electric deck lift allows the operator to conveniently raise the cutter deck with the flip of a switch for momentary traction assistance and under-deck maintenance

  • Fan Mounted on Pump
    Fan mounted on top of hydro pump assists in cooling of hydro system and repelling debris.
  • Foot Pedal
    Foot pedal controls speed and forward / reverse direction.

  • Fuel Tank
    Rugged 5.5 gallon fuel tank with wide filler neck and reserve.

  • Suspension
    Patented suspension technology results in increased speed and a smoother ride.

  • Ride-On Mower Warranties†
    Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.

  • Two-Stage Snowblower
    Two-stage 50" snowblower with electric chute rotation available. (Optional cab also available)



*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.
†See dealer for warranty details. Refer to engine operator's manual for engine warranty.

Specifications

MODEL H2224KAV w/R61
ENGINE
Engine Make Kawasaki® FS730V
Rating / Displacement 24 gross hp** / 726cc
PTO Electric
Cylinders 2
Starting Electric
Fuel Tank Capacity (total) 5.5 gal.
MOWER
Cutting Width (in.) 61"
Cutting Height (in.) 1.5"- 5"
Spindles Fabricated 10-gauge
Deck Construction Aluminum Greaseable
DRIVE TRAIN
Transmission Hydro pump and wheel motors with 7" cooling fans
Drive Axles 1.25
GROUND SPEED
Speeds-fwd. (mph) 0-8
Speeds-rev. (mph) 0-4
DIMENSIONS
Overall Length 111"
Overall Width (in.) deflector down / deflector up (model) 77" / 63.5"
Dry Weight (lbs.) 1096
Operator Control & Comfort Systems
Seat Package Premium mid-back adjustable seat
Certified Roll-over Protection System N/A
Instrumentation Hour Meter
Controls / Safety Group Single foot pedal speed control, Foot-actuated operator presents, Blade/clutch safety switch
Parking Brake / Safety Circuit Drum
