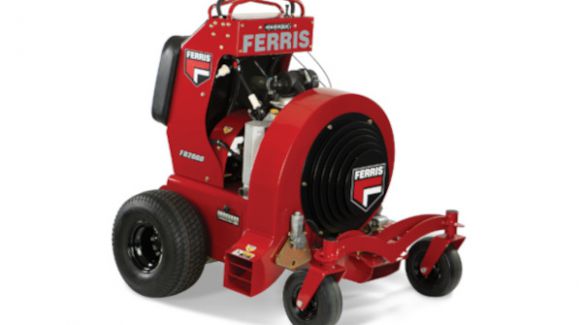

Ferris 5902132
Features
Joystick Deflector Control
The joystick allows the operator full control of the air flow direction – forward, left and right. Pulling back on the joystick closes all deflectors for transport.
Quad Control Handle System™
This system provides automatic return to neutral, integrated operator presence, self-activating parking brake and travel direction control.
Dual Deflector Air Flow System™
The split left deflector system allows the operator to change the angle of the air flow to enhance the deep cleaning of debris.
Commercial Power
Vanguard 23.0 Gross HP* V-Twin engine provides commercial strength power.
LED Light
An integrated LED light in the operator tower allows working and loading into dusk, extending the work day.
Torsion-Mounted Front Axle Assembly
Go over curbs or uneven terrain with ease with the torsion-mounted front axle. Bumps are softened, smoothing out the ride.
3-Way Air Discharge
The right discharge is ideal for deep cleaning or blowing above gravel roads and driveways. The center discharge plumes to the right and is ideal for cart path and trail cleaning. The left discharge has the patented Dual Deflector Air Flow System™ for operator controlled twin air columns. This patented undercut allows for downhill blowing.
Ergonomic Platform and Thigh Pad
A skid-mounted operator platform and ergonomic thigh pad provide excellent operator comfort.
Specifications
Model Number | 5902132 |
Engine Brand | Vanguard® V-Twin |
Engine Power Rating* | 23 |
Displacement (cc) | 627 |
RPM | 3200 |
Fuel Tank Capacity (gal) | 10, w/ fuel gauge |
Fuel Type | Regular, unleaded gasoline |
Drive Train Type | Dual Hydrostatic |
Transaxles | Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans |
Number of Speeds | Infinitely Variable |
Max. Travel Speed (mph) | 8 |
Front Tire Size | 11 x 4-5, flat-free |
Rear Tire Size | 20 x 8-8 |
Air Flow (Cubic ft/min) | 4500 |
Air Speed (mph) | 165+ |
Overall Length (in) | 60 |
Overall Width (in) | 42 |
Overall Height (in) | 54 |
Dry Weight (lbs) | 749 |
Ignition | Flywheel Magneto |
Solenoid Shift | Solenoid Shift |
Fuse (amp blade) | 30 |
