Ferris 5901736 / NOT AVAILABLE

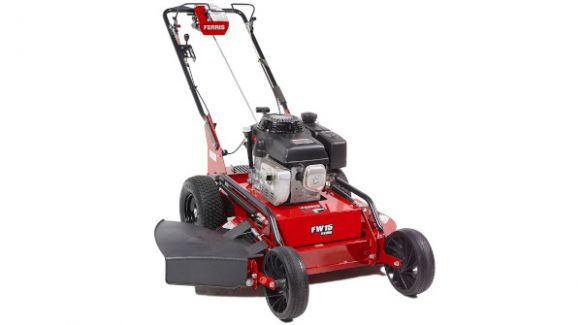

FW15 5901736
Overview:
The FW15 variable hydrostatic walk-behind provides a narrow footprint for trimming around trees and planter beds. Maneuverable and easy to operate, this unit will become a crew favorite.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
One Hand Operation
Comfortable, single-handed operation with adjustable speed control. The handlebars are adjustable with four positions for operator comfort.
Commercial-grade Steel Timed Mower Deck
32” compact fully-commercial, fabricated, reinforced, steel deck with dual timed cutting blades.
Easy Cut Height Adjustmet
Spring assisted, single adjustment point lever for easy cut height adjustment.
Caster Wheel Model Availabe
The 10.5” front tires are available in a lockable, caster wheel configuration or a fixed wheel configuration.
Variable Hydrostatic Drive
In forward and reverse, the FW15 provides smooth traction for sloping terrain and precise trimming.
Specifications
| Model Number | 5901736 |
| Engine Brand | Honda® GXV390 |
| Engine Power Rating * | 10.2^ |
| Displacement (cc) | 389 |
| PTO | Manual, Cable |
| Cylinders | 1 |
| Starter | Manual |
| Fuel Tank Capacity (gal) | 0.55 |
| Cutting Width (in) | 32 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Aluminum Greaseable |
| Deck Construction | 14 and 12-gauge |
| Transmission | Peerless axle with differential chain driven by Hydro-Gear® RT-310 pump and motor |
| Drive Axles (in) | 0.75 |
| Caster Tires (in) | 10.5 x 3 Fixed Wheel |
| Drive Tires (in) | 13 x 5-6 |
| Ground Speed-Fwd (mph) | 0-4 |
| Ground Speed-Rev (mph) | 0-2 |
| Overall Length (in) | 74.25 |
| Overall Width (in) Deflector Down/Deflector Up | 44 / 32.5 |
| Dry Weight (lbs) | 280 |
| Instrumentation | Speed Indicator |
| Safety Group/Controls | Blade Control Bail OPC |
