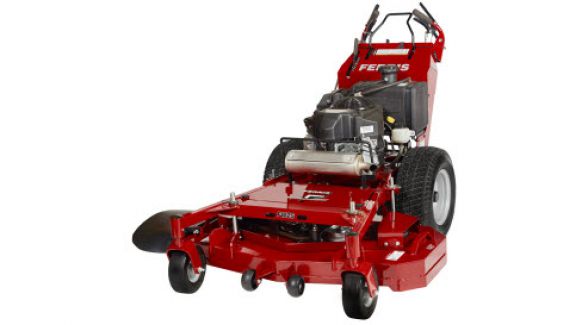

Ferris FW25KAV1948 / NOT AVAILABLE

Double tap to zoom



Features

  • Cruise Control to Set Speed
    Adjust the mower's speed without removing your hands from the control handles with the improved, ready-access cruise control bar. Simply press forward to increase speed and pull back a slow down. A convenient speed indicator is placed within easy view on the control panel.

  • Easier-To-Use Controls
    New CC™ Centralized Control lawn mower handle design places the operator's hands in the ideal position to access all in-demand controls. Ergonomic operator presence, steering and reverse levers on both handles operate with a light touch to reduce operator fatigue. Easily adjust control tensions to fine tune for different operating conditions.

  • Keeps the Engine Running
    Need to walk away from the mower to move an obstacle or debris? The new PTO switch allows the operator to stop the mower blades quickly and easily. While mowing, simply step on the centralized foot activated neutral pedals or pull back on the cruise control bar to place in neutral. Then, remove your hands from the controls. The blades will stop while the engine continues to run. Restarting the blades is just as easy. Place your left or right hand on the controls, pull up the PTO switch and set your speed with the cruise control bar.

  • Easy-Access Neutral Position
    New dual access neutral pedals take the guesswork out of finding neutral, simplifying operation and saving time. The operator can use either foot to put the mower in neutral. The neutral position is clearly identified on the speed indicator on the dash.

  • Well Built, Well Protected
    Thick, 1/4" steel guards protect the front deck mower's transmission when going over curbs or rolling on and off a trailer - the type of rough handling that occurs daily under commercial use and can render lesser mowers inoperable. The design also reduces build up of debris to impove air flow and allow for access to the filter for maintenance.

  • Improved Deck Mounting
    We listened closely to our pro users when considering the enhancements on our redesigned mower deck. The new mounting system provides easier deck leveling, improved flexibility over terrain, easy-access grease points and more durable wear points for reduced maintenance. Ferris makes choosing mowers a no brainer.

  • Longer Belt Life
    The parts that wear out the soonest don't have to go so soon. The Ferris-engineered deck drive belt system and larger pulleys provide gentler belt tension, which - combined with our unique debris shield - extends belt life and reduces wear on bearings.

  • Easy Reach Parking Brake
    We located the parking brake handle conveniently in front of the control panel, providing instant access with minimal operator effort to reach and engage.

  • Solid Construction
    All Ferris walk-behind mowers are ruggedly built nose to tail to withstand daily commercial-duty operation and transport. Robust 1/4" steel engine deck construction stands the test of time.

  • Easy to Secure
    Dedicated tie-down points located in the front and the rear makes trailering this commercial lawn mower between jobs secure and easy.



*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.

Specifications

MODEL FW25KAV1948
ENGINE
Engine Make Kawasaki FS600V
Rating / Displacement 19**
PTO Electric
Cylinders 2
Starting Electric
Fuel Tank Capacity (Total) 5
MOWER
Cutting Width (in.) 48"
Cutting Height (in.) 1.5" - 4.5"
Spindles Cast-aluminum, greaseable
Deck Construction 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
DRIVE TRAIN
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Drive Axles 1" Tapered
Drive Tires 20 x 7-10
Caster Tires (in.) 9 x 3.5-4 Flat-Free
GROUND SPEED
Speeds-Fwd. (mph) 0-6.25
Speeds-Rev. (mph) 0-3
DIMENSIONS
Overall Length 75.5"
Overall Width (in.) Deflector Down/Deflector Up 61" / 49.5"
Dry Weight 694
OPERATOR CONTROL & COMFORT SYSTEMS
Control/Safety Group Operator presence, centralized foot activated neutral pedals, neutral start safety circuit / Standard controls
Parking Brake/Safety Circuit Internal Transaxle
