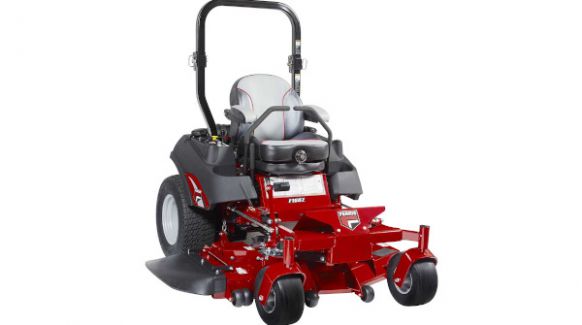

Ferris 5901517
Features
Affordable Power
Now available with a Briggs & Stratton® Vanguard™ 810cc engine, which delivers uncompromised power at an affordable price.
iCD™ Cutting System
The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
Accessibility
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Commercial Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles deliver power and durability
Foot-Operated Deck Lift
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Premium Seat
Suspension seat for optimal comfort.
Traction
Large 24" drive tires allow for greater traction, smoother ride and improved curb climbing performance.
Ride-On Mower Warranties†
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.
Cast-Iron Spindles
Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly. (52" Model)
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Specifications
| Model Number | 5901517 |
| Engine Brand | Kawasaki® FX730V |
| Engine Power Rating * | 23.5 gross hp |
| Displacement (cc) | 726 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Tank Capacity (gal) | 11 |
| Cutting Width (in) | 48 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Aluminum |
| Deck Construction | iCD™ Cutting System |
| Suspension | N/A |
| Transmission | Dual commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans |
| Drive Axles (in) | 1.375 Tapered |
| Caster Tires (in) | 13 x 6.5-6 Flat-free |
| Drive Tires (in) | 24 x 9.5-12 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 78 |
| Overall Width (in) Deflector Down/Deflector Up | 61.5 / 51 |
| Dry Weight (lbs) | 997 |
| Seat Package | Premium suspension mid-back with adjustable arm rests, adjustable fore and aft positioning |
| Instrumentation/Hour Meter | Fuel level gauge in each tank, hour meter |
| Certified Roll-over Protection System | Standard, 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls |
| Parking Brake / Safety Circuit | Internal transaxle |
