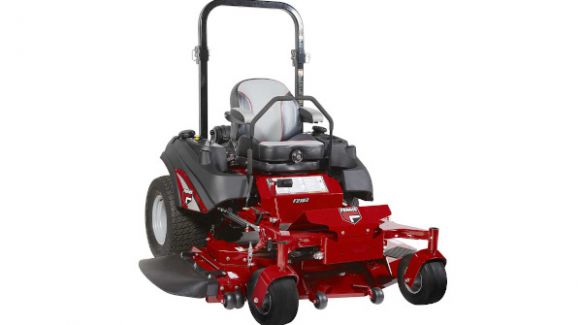

Ferris 5901651

Double tap to zoom



Features

500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Affordable Power
Now available with a Briggs & Stratton® Vanguard 810cc engine, which delivers uncompromised power at an affordable price.

iCD™ Cutting System
The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Cast-Iron Spindles
Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly.

Accessibility
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Commercial Transmission
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles deliver unmatched power and durability.

Foot-Operated Deck Lift
With an adjustable pedal, easily change change cut height in 1/4" increments from 1.5"- 6".

Premium Seat
Mid-back suspension seat with adjustable arm rests that helps take the bumps out of your work day.

Traction
Large 24" drive tires allow for greater traction, smoother ride and improved curb climbing performance.

Ride-On Mower Warranties
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

MODEL 5901651
Engine Brand Kawasaki® FX801V
Engine Power Rating * 25.5 gross hp
Displacement (cc) 852
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 61
Cutting Height (in) 1.5 - 6
Spindles Cast-Iron
Deck Construction iCD™ Cutting System
Suspension N/A
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in) 1.375 Tapered
Caster Tires (in) 13 x 6.5-6 Flat-free
Drive Tires (in) 24 x 12-12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 79
Overall Width (in) Deflector Down/Deflector Up 76 / 63
Dry Weight (lbs) 1190
Seat Package Premium suspension mid-back
Hour Meter Fuel level gauge in each tank, hour meter
Certified Roll-over Protection System Standard, 165° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxle
