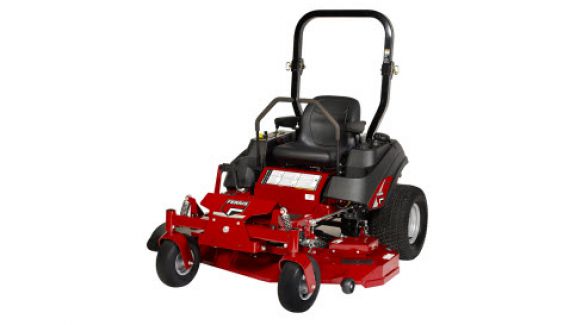

Ferris IS700ZKAV2352 / NOT AVAILABLE
Features
-
Heavy-Duty Bumper
Heavy-duty bumper protects the engine while also allowing for easy service access. -
Patented Suspension
Patented suspension system consists of adjustable rearcoil-over-shocks (shown) and front independent adjustable coil-over-shocks. -
Ride-On Mower Warranties†
Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability. -
Exceptional Performance
Patent-pending steering system delivers exceptionally smooth performance. -
Integrated Transmissions
Commercial Hydro-Gear® ZT-3400® transaxles are designed for high performance and are fully serviceable. -
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
-
iCD™ Cutting System
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. -
Ergonomic Control Panel
Ergonomic control panel features cup holder and fuel gauge for operator convenience. -
Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve. -
Acres Per Hour
Mows up to 5 acres per hour, based on 80% efficiency. -
Miles Per Hour
Up to 10 MPH ground speed, reverse 6 MPH.
*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.
†See dealer for warranty details. Refer to engine operator's manual for engine warranty.
Specifications
| MODEL | IS700ZKAV2352 |
| ENGINE | |
| Engine Brand | Kawasaki® FS691V |
| Rating / Displacement | 23 gross hp** / 726cc |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Tank Capacity | 5.5 gal. |
| MOWER | |
| Cutting Width (in.) | 52" |
| Cutting Height (in.) | 1.5"- 5.0" |
| Spindles | Aluminum Greaseable |
| Deck Construction | iCD™ Cutting System with professional lawn striper |
| SUSPENSION | |
| Suspension | Adjustable rear coil-over-shocks with pivoting front axle with shocks |
| DRIVE TRAIN | |
| Transmission | Dual, commercial Hydro-Gear® ZT-3400 transaxles with 7" cooling fans |
| Drive Axles | 1.125" |
| Caster Tires (in.) | 13 x 5-6 |
| Drive Tires (in.) | 22 x 11-10 |
| GROUND SPEED | |
| Speeds-fwd. (mph) | 0-10 |
| Speeds-rev. (mph) | 0-5 |
| DIMENSIONS | |
| Overall Length | 81" |
| Overall Width (in.) deflector down / deflector up (model) | 67.5" / 54.5" |
| Dry Weight (lbs.) | 1059 |
| OPERATOR CONTROL & COMFORT SYSTEMS | |
| Seat Package | Mid-back seat with armrests |
| Certified Roll-over Protection System | Standard, 180° foldable |
| Instrumentation | Fuel gauge, Hour meter |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit. |
| Parking Brake / Safety Circuit | Internal transaxles |
