Ferris 5902025

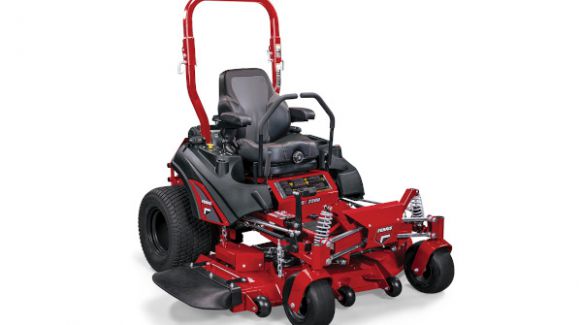

ISX™ 2200 Series 5902025
Overview:
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A 2-belt iCD™ cutting system delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Forefront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 40 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)
Premium Suspension Seat
Select models feature the premium high-back suspension seat with armrests, adjustable lumbar and back recline. (ISX3300 also includes a headrest)
Hydro-Gear ZT-4400™ Transaxles
Dual-commercial transaxles with 8.3" cooling fans to repel debris.
Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Specifications
| Model Number | 5902025/5901977 |
| Engine Brand | Kawasaki® FX801V |
| Engine Power Rating * | 25.5 |
| Displacement (cc) | 852 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (gal) | 11 |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
| Cutting Width (in) | 52 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Cast-iron greaseable |
| Deck Construction | iCD™ Cutting System, 2-Belt |
| Suspension | ForeFront™ Suspension System |
| Transmission | Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans |
| Drive Axles (in) | 1.375 |
| Caster Tires (in) | 13 x 6.5-6 |
| Drive Tires (in) | 24 x 9.5-12 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 82.5 |
| Overall Width (in) Deflector Down/Deflector Up | 67 / 57 |
| Dry Weight (lbs) | 1223 |
| Seat Package | Premium high-back Suspension Seat with arm rests , adjustable lumbar and back recline. |
| Certified Roll-over Protection System | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
| Parking Brake / Safety Circuit | Hand operated Internal transaxle brake |
