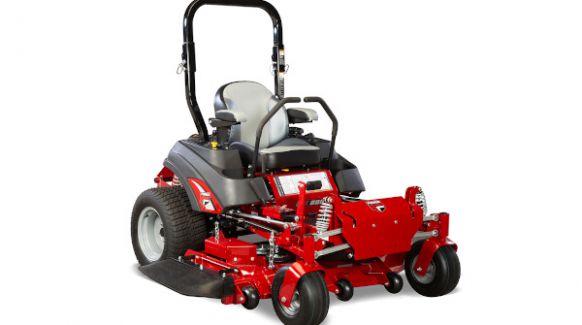

Ferris 5901777 / NOT AVAILABLE

Double tap to zoom



Features

ForeFront™ Suspension System
The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Integrated Transmission
Commercial Hydro-Gear® ZT-3400™ transaxles are designed for high performance and are fully serviceable.

Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System
iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Acres per Hour
Mows up to 5 acres per hour, based on 80% efficiency.

Miles per Hour
Up to 10 MPH ground speed, reverse 6 MPH.

Specifications

Engine Brand Briggs & Stratton® Commercial Series - EFI
Engine Power Rating * 27
Displacement (cc) 810
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 5.5
Cutting Width (in) 61
Cutting Height (in) 1.5 - 5
Spindles Aluminum
Deck Construction iCD™ Cutting System
Suspension ForeFront™ Suspension System - Front independent with four steel control rods for the ultimate in comfort and control
Transmission Dual, commercial Hydro-Gear ZT-3400®
Drive Axles (in) 1.125
Caster Tires (in) 13 x 6.5 - 6
Drive Tires (in) 23 x 10.5 - 12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 83.125
Overall Width (in) Deflector Down/Deflector Up 75/63.5
Dry Weight (lbs) 1197
Seat Package Premium adjustable seat with arm rests
Certified Roll-over Protection System Standard, 180° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxles
