Home & Workshop Accessories AC1-20GS Portable, Gasoline Air Compressor (older model) / NOT AVAILABLE

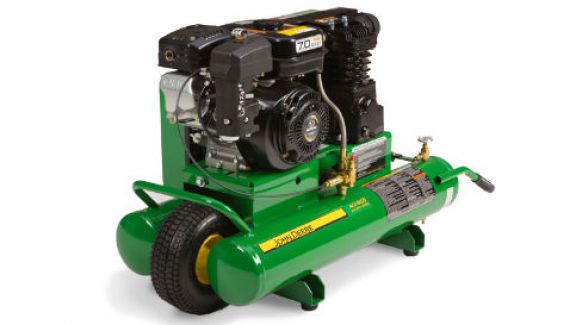

AC Series / Gasoline AC1-20GS Portable, Gasoline Air Compressor (older model)
Overview:
The AC1-20GS Air Compressor has a 20-gallon Subaru engine and is portable so you can use it where you need it.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 20 gal. portable gas engine
- 211cc Subaru, 13.1 CFM
Specifications
| Manufacturer | John Deere |
| Model | AC1-20GS Portable, Gasoline Air Compressor |
| Specifications | |
| Manufacturer | John Deere |
| Model/Part No. | AC1-20GS |
| Pressure (psi) | 100 |
| Flow (cfm) | 13.1 |
| Power source | Gasoline, Subaru OHC/OHV |
| Volts/amps | -- |
| Displacement | 211cc |
| Compressor | Single stage |
| Cylinder | Cast iron |
| Crankcase | Cast iron |
| Head | Cast iron |
| Lubrication | Splash |
| Flywheel | 12 in. |
| Regulator | Yes |
| Tank pressure gauge | Yes |
| Regulator pressure gauge | Yes |
| Control system | Idle control with continuous run |
| Drain valves | Yes |
| Design | 20-gal. ASME certified |
| Wheels | Two pneumatic |
| Shipping weight | 291 lb. |
| Limited warranty | Two years |
