Home & Workshop Accessories AC-G8010S-E Large Frame Generator (older model) / NOT AVAILABLE
AC Series / Gasoline AC-G8010S-E Large Frame Generator (older model)
Overview:

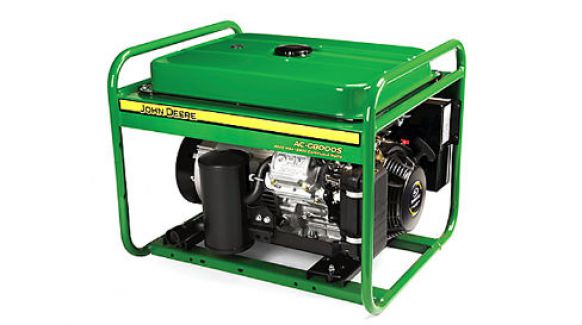

The electric start AC-G8010S-E Large Frame Generator has a maximum output o 8,000 watts and comes standard with a fuel shutoff valve.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Maximum output: 8,000 watts
- 404cc Subaru OHV gasoline engine with low oil shutdown
- Brushless 120V/240V alternator
- Fuel shutoff valve standard
- 7.3 gallon fuel capacity
- Voltmeter/hour meter standard
- Idle control standard
- Optional lifting hook and wheel kit available
- Electric start
- 2-year warranty
Specifications
| Manufacturer | John Deere |
| Model | AC-G8010S-E Large Frame Generator |
| Specifications | |
| Manufacturer | John Deere |
| Model/Part No. | AC-G8010S-E |
| Max. AC output | 8,000 watts |
| Rated AC output | 6,900 watts |
| Displacement | 404cc |
| Engine | Subaru |
| Engine Type | OHV |
| Alternator type | Brushless |
| Frequency (hertz) | 60 |
| Voltage | 120V / 240V |
| Max. amps (120V/240V) | 66.7 / 33.3 |
| Cont. amps (120V/240V) | 57.5 / 28.75 |
| Voltmeter | Yes |
| Receptacles | (2) 120V, 20A GFCI duplex 120v/240V, 20A twist lock 120V, 30A twist lock |
| Main circuit breaker | (2) 20A toggle circuit breaker, single pole (2) 20A toggle circuit breaker, double pole 30A toggle circuit breaker, single pole |
| Low-oil shutdown | Yes |
| Rated speed (rpm) | 3,600 |
| Starting system | Recoil / elec. option |
| Decibel rating | 78.2 |
| Idle control | Yes |
| Fuel capacity | 7.3 gal / 27.63 liter |
| Run time (at full load) | 6.7 hours |
| Fuel gauge | Yes |
| Full power switch | No |
| Dry weight (lb/kg) | 245 / 111 |
| Spark arrestor | Yes |
| Wheel kit | Optional |
| Lifting hook | Optional |
| Hour meter | Yes |
| Battery charging | No |
| CSA listed | Yes |
| Fuel-shutoff valve | Yes |
| Warranty | 2 year |
